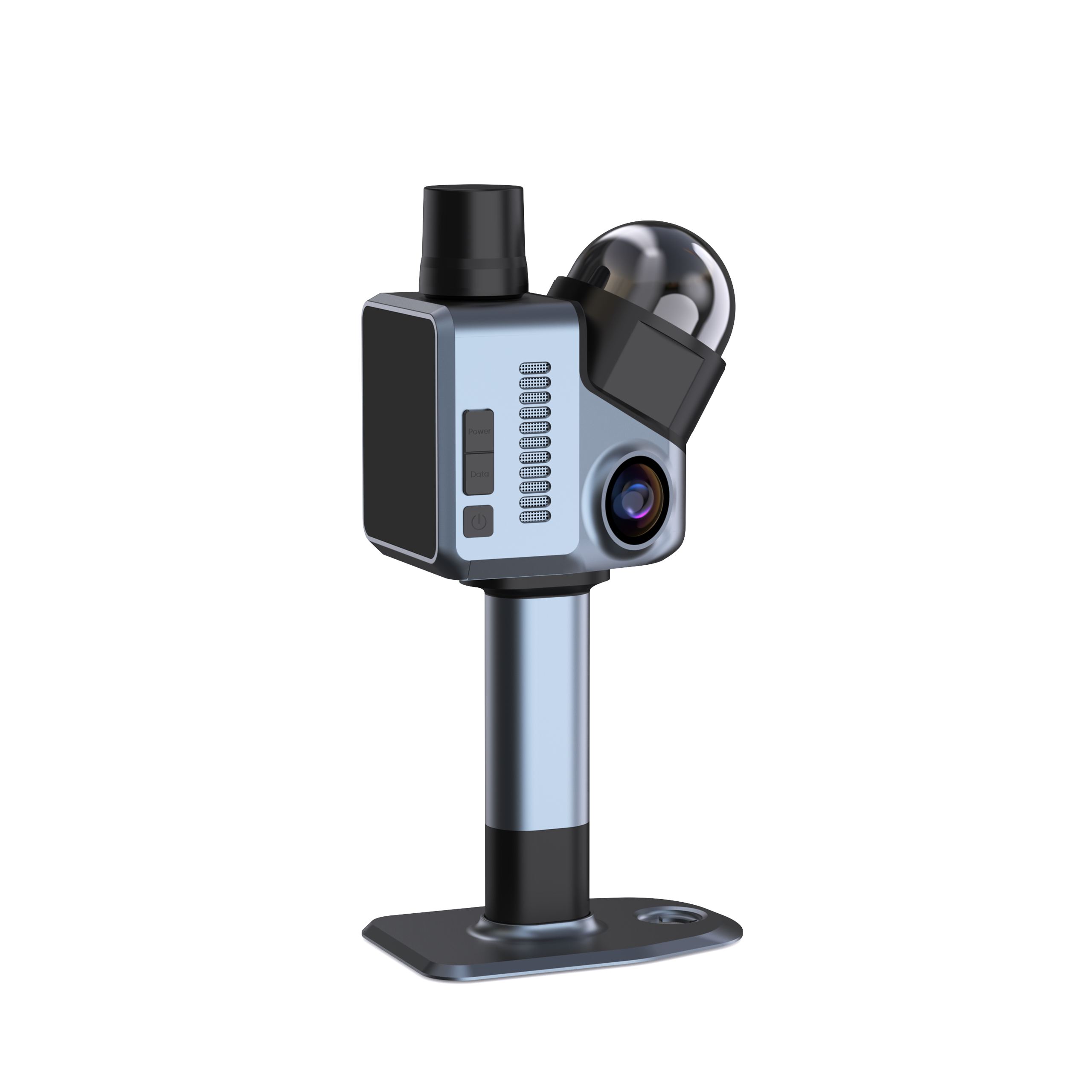

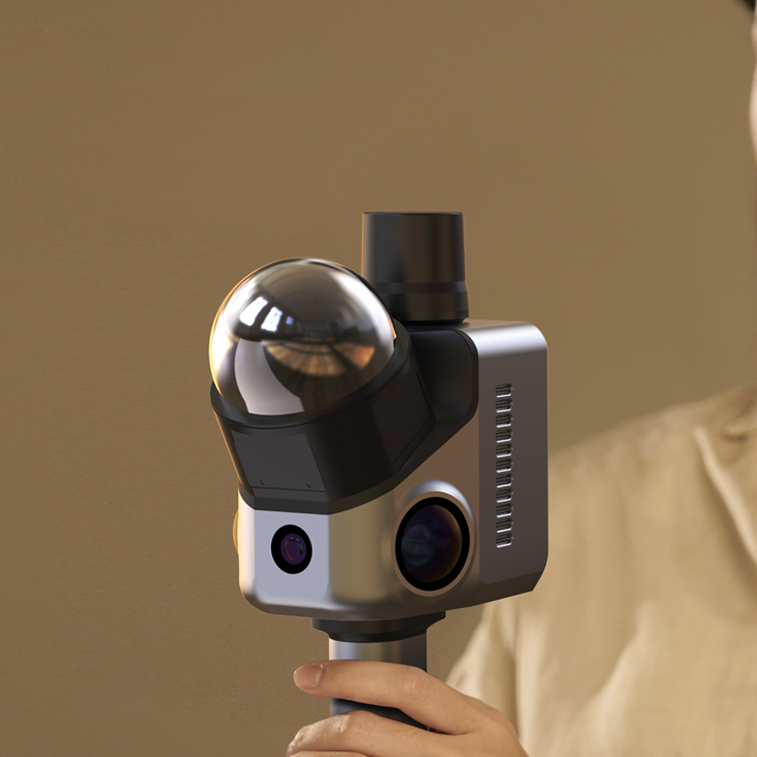

3DMakerPro Hawk LiDAR Scanner

The 3DMakerPro Hawk is a professional handheld LiDAR scanner built for on-site surveying, construction, engineering, industrial inspection and digital twin work. It captures dense, color-accurate point clouds of large indoor and outdoor spaces and moves them straight into CAD, BIM and 3D workflows.

Hawk is the flagship of the 3DMakerPro LiDAR range. A hybrid solid-state LiDAR engine reaches 1.5 cm accuracy at 10 m and runs at 480,000 points per second, the fastest point rate in the lineup. A 360 degree by 63.5 degree field of view, an 80 to 140 m scan range and dual 13 MP 1-inch cameras let you document a full site in a single walk-through with realistic texture.

Built for the field, Hawk uses an IP65 metal body, a quick-swap 12,000 mAh battery grip and NIR visual tracking for stable positioning in low-light and repetitive spaces. The RTK Kit is included for georeferenced, survey-grade results, and it deploys handheld, on a tripod or vehicle-mounted.

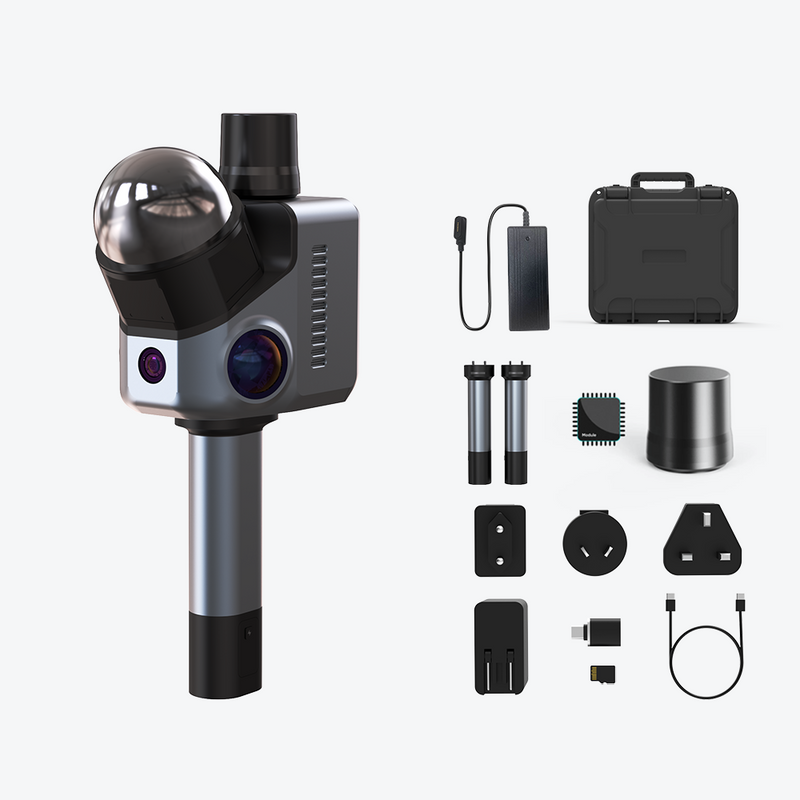

What's Included:

• 3DMakerPro Hawk LiDAR scanner
• Removable battery grip (12,000 mAh)
• USB-C charging cable
• Power adapter
• RTK Kit
• Carrying case
• Quick start guide and warranty card

Features

Class-Leading 480,000 Points Per Second
Hawk captures nearly half a million points per second, the fastest point rate in the 3DMakerPro range, so large sites and complex structures are documented quickly in dense detail.

1.5 cm High Accuracy
A hybrid solid-state LiDAR engine holds 1.5 cm accuracy at 10 m, 3 cm at 20 m and 5 cm at 40 m for dependable professional spatial measurements.

Wide 360 by 63.5 Degree Field of View
A full 360 degree horizontal sweep with a 63.5 degree vertical window reduces blind spots on interiors, facades and tall industrial structures, so you map a space in a single pass.

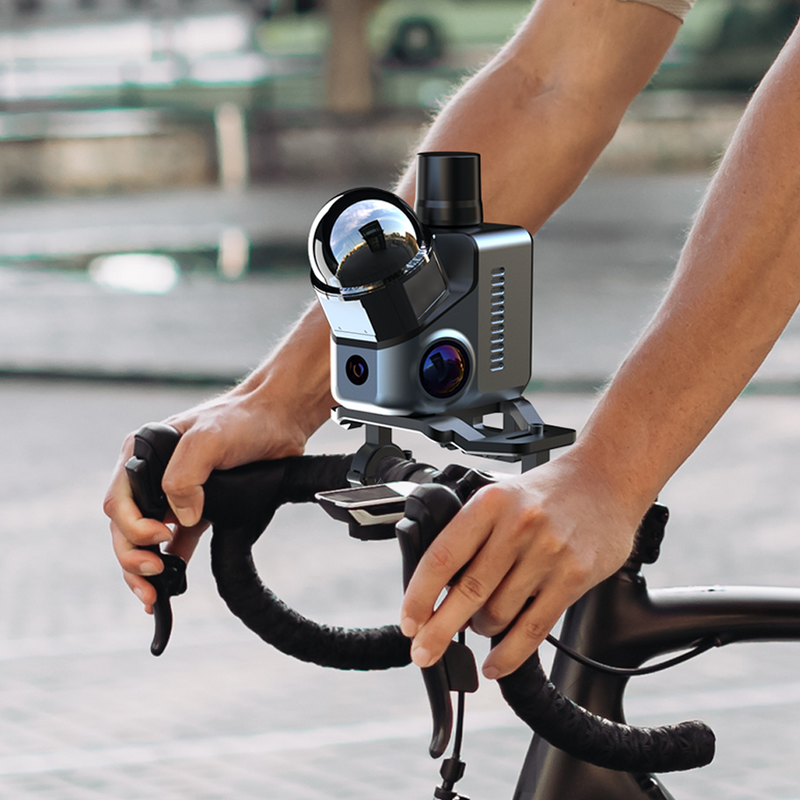

Dual 13 MP Cameras and NIR Tracking
Two 13 MP 1-inch cameras add lifelike color texture to the point cloud, while the NIR visual tracking module keeps positioning stable in low-light or repetitive geometric spaces.

IP65 Metal Body and AMOLED Touchscreen
The IP65 rated metal housing resists dust and water for harsh field and industrial sites, and a 3.9 inch AMOLED touchscreen gives real-time monitoring and on-device control.

Quick-Swap Battery and RTK Positioning
A removable 12,000 mAh battery grip gives up to 1 hour of continuous scanning and swaps on the fly, and the included RTK Kit adds georeferenced, survey-grade coordinates.

What's Included

Included with Your Purchase:

• 3DMakerPro Hawk LiDAR scanner
• Removable battery grip (12,000 mAh)
• USB-C charging cable
• Power adapter
• RTK Kit
• Carrying case
• Quick start guide and warranty card

Specifications

FAQ

Q: How fast does the Hawk capture data?
A: It runs at 480,000 points per second, the fastest point rate in the 3DMakerPro LiDAR range, so large or complex sites are documented quickly.

Q: How accurate is the Hawk?
A: It holds 1.5 cm accuracy at 10 m, 3 cm at 20 m and 5 cm at 40 m using its 905 nm hybrid solid-state LiDAR engine.

Q: What range and field of view does it cover?
A: The Hawk scans from 80 to 140 m, with a 40 to 70 m usable radius depending on reflectivity and a 360 degree by 63.5 degree field of view.

Q: Does it include RTK positioning?
A: Yes. The RTK Kit is included, so you get georeferenced, survey-grade coordinates for surveying and mapping work.

Q: Can it work in the field and in low light?
A: Yes. The IP65 metal body resists dust and water, and the NIR visual tracking module keeps positioning stable in low-light or repetitive geometric spaces.

Q: How long does the battery last?
A: The removable 12,000 mAh battery grip gives up to 1 hour of continuous scanning and swaps on the fly, with 65W fast charging to reduce downtime.
