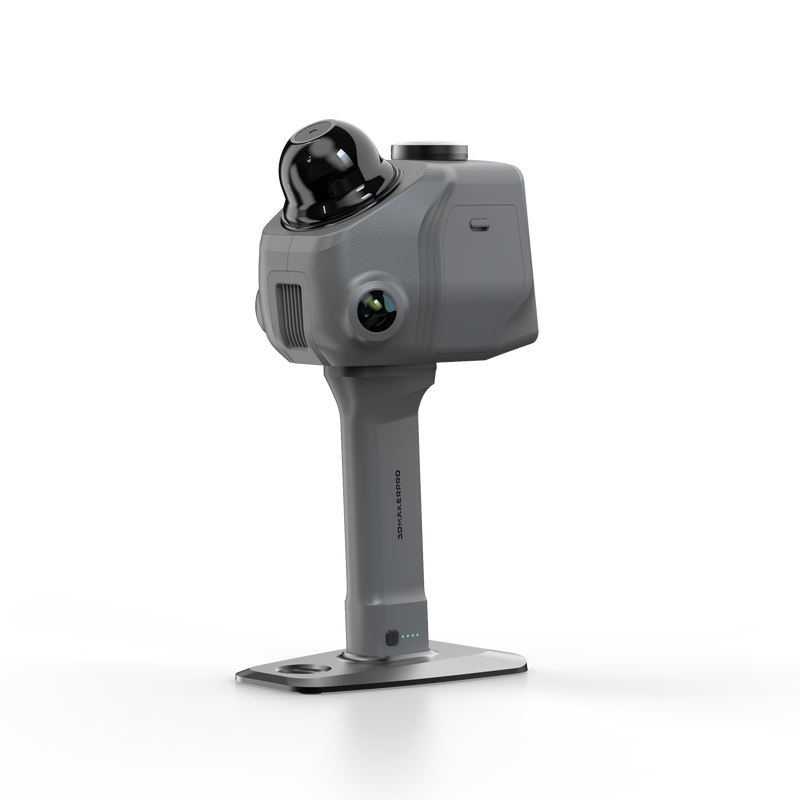

3DMakerPro Raven SLAM LiDAR Scanner
The 3DMakerPro Raven is a lightweight SLAM LiDAR scanner built for surveying, construction, real estate, and digital twin work. It captures large indoor and outdoor environments in minutes and turns them into colorized 3D point clouds you can take straight into CAD and BIM workflows.
The standard Raven pairs a single 12 MP camera with a 905 nm LiDAR engine that reaches up to 100 m and holds 2 cm accuracy at 10 m. A 360 degree by 40 degree field of view and 150,000 points per second let you cover a site in a single walk-through, while the swappable battery keeps you scanning in the field.
Raven is the entry point into the 3DMakerPro LiDAR range. It can be upgraded later with an optional RTK module for georeferenced, survey-grade results, so teams moving from traditional surveying to digital capture can start here and grow.

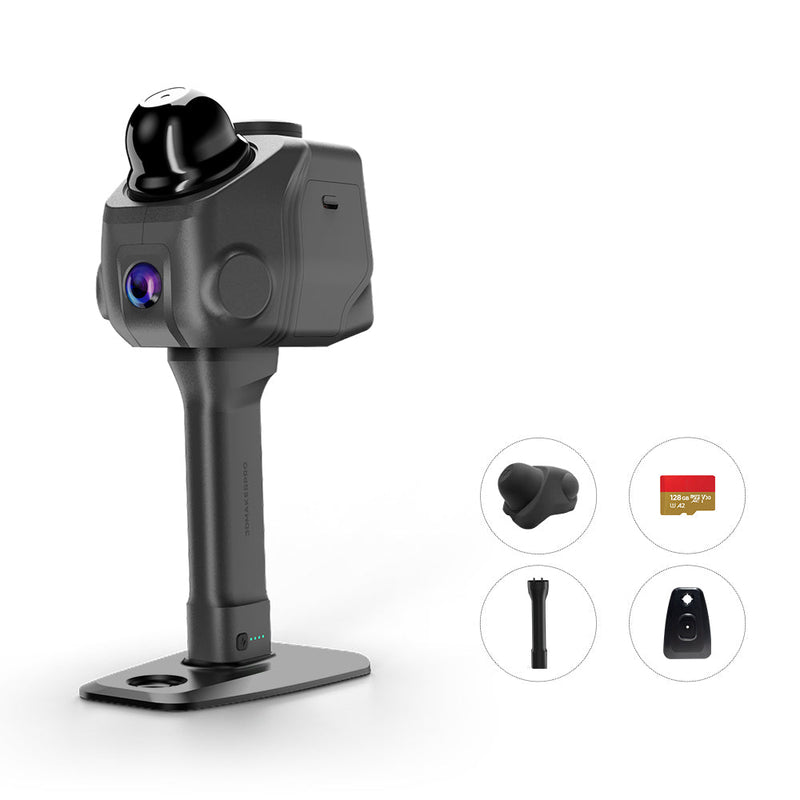

What's Included:
- 3DMakerPro Raven LiDAR scanner (1 x 12 MP camera)
- Rechargeable swappable battery
- USB-C charging cable
- Protective carrying case
- Quick start guide
Features

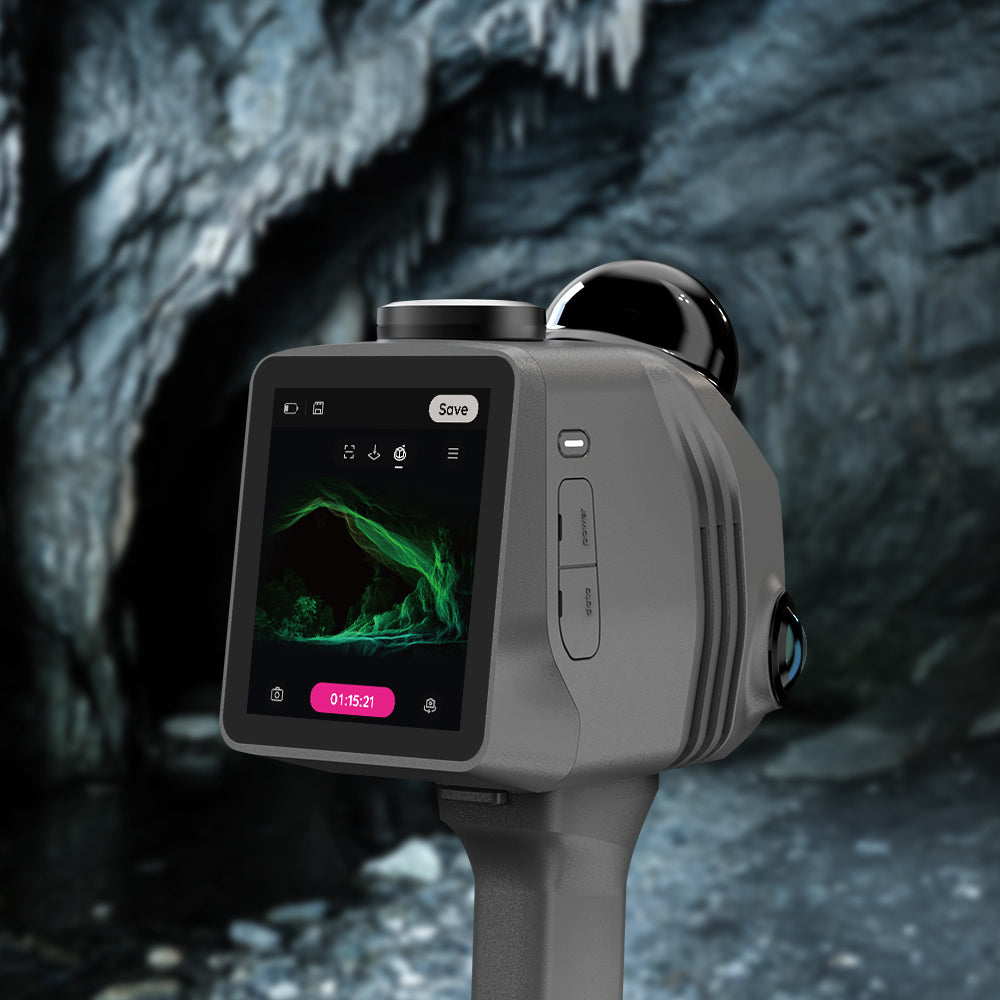

SLAM-Based Real-Time Mapping
Raven fuses LiDAR, IMU, and visual data to track its own position as you move, so you capture accurate point clouds in real time with almost no setup.
Survey-Grade 2 cm Accuracy
The 905 nm LiDAR engine holds 2 cm accuracy at 10 m, 3 cm at 20 m, and 5 cm at 40 m for dependable professional spatial data.
Wide 360 by 40 Degree Field of View
A full 360 degree horizontal sweep with a 40 degree vertical window reduces blind spots and lets you map a space in a single pass.
150,000 Points Per Second
A fast point rate captures dense detail quickly, so large sites and complex structures are documented in less time on site.
12 MP Color and Gaussian Splatting
A 12 MP camera adds true-color texture to the point cloud and supports Gaussian splatting workflows for realistic visual reconstructions.
Swappable Battery for Continuous Fieldwork
Each battery supports up to 120 minutes of scanning and swaps out quickly, so long field sessions continue without waiting for a recharge.
What's Included
Included with Your Purchase:
- 3DMakerPro Raven LiDAR scanner (1 x 12 MP camera)
- Rechargeable swappable battery
- USB-C charging cable
- Protective carrying case
- Quick start guide
Specifications
| Cameras | 1 x 12 MP (RTK module optional) |
| Accuracy | 2 cm at 10 m, 3 cm at 20 m, 5 cm at 40 m |
| Scan Radius | 40 m at 10% reflectivity, 50 m at 80% reflectivity |
| Scan Range | 80 to 100 m |
| Field of View | Horizontal 360 degrees, Vertical 40 degrees |
| Point Cloud Frequency | 150,000 points per second |
| Laser Light Source | 905 nm |
| Eye Safety | Class 1 (IEC60825-1:2014) |
| Battery Runtime | Up to 120 minutes per swappable battery |
FAQ
Q: How accurate is the Raven?
A: It holds 2 cm accuracy at 10 m, 3 cm at 20 m, and 5 cm at 40 m using its 905 nm LiDAR engine.
Q: What range does it cover?
A: The Raven scans from 80 to 100 m, with a usable radius of 40 m at 10% reflectivity and 50 m at 80% reflectivity.
Q: Can I add RTK positioning later?
A: Yes. The standard Raven accepts an optional RTK module, and the Raven Max RTK ships with the RTK Kit included for georeferenced results.
Q: How long does the battery last?
A: Each swappable battery supports up to 120 minutes of scanning, and you can hot swap batteries to keep working in the field.
Q: What can I do with the data?
A: Raven outputs colorized point clouds that drop into CAD, BIM, and 3D workflows, and it supports Gaussian splatting for realistic visual models.
