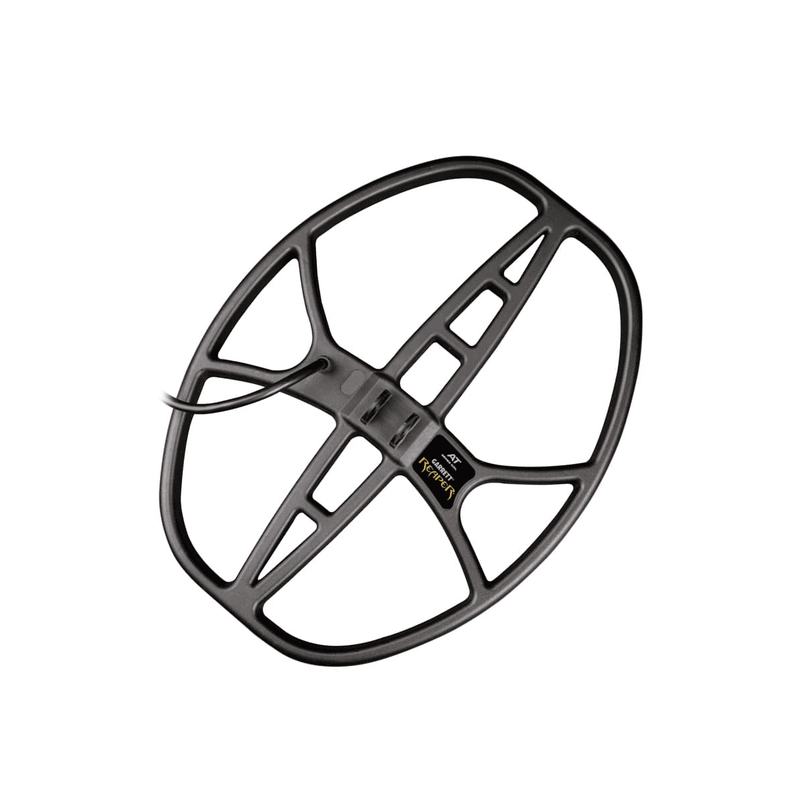

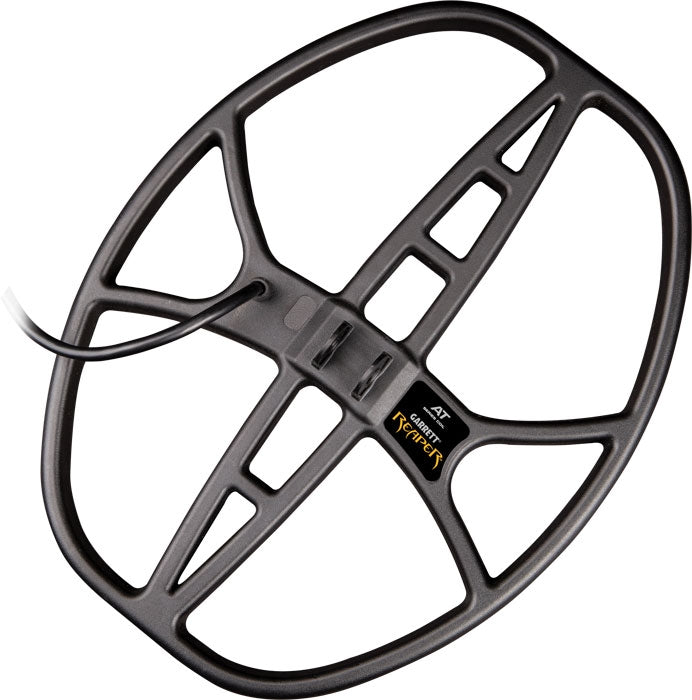

Garrett 14 x 11 in DD Reaper Search Coil for AT Series
The Garrett 14 x 11 in DD Reaper is a large accessory search coil for the AT series, built to cover more ground and reach deeper on bigger targets. It fits the Garrett AT Pro, AT Gold and AT Max and connects with the 2-pin AT coil connector, so it mounts straight onto the lower rod with no adapter.
The Reaper gives about 25% more ground coverage than the 8.5 x 11 in stock coil, which makes it a strong pick for working large fields, hunting caches and swinging over taller grass or field stubble. It adds real depth on medium to large targets while still hitting smaller finds, and the Double D winding keeps it running smooth in mineralized soil. Like all AT coils it is fully submersible to 10 ft, so creeks, lakes and shallow surf stay in range.
GeoWork Supply ships the Reaper with its protective coil cover already in the box. The AT Pro and AT Max owner's manuals are linked in the resources below.
What's Included:
- Garrett 14 x 11 in DD Reaper search coil
- 14 x 11 in searchcoil cover
Features
About 25% More Ground Coverage
At 14 x 11 in the Reaper sweeps roughly a quarter more ground per pass than the 8.5 x 11 in coil. That makes short work of large fields, cache sites and open ground where coverage matters.
Double D Depth and Separation
The DD winding adds depth on medium to large targets while still picking up smaller finds. It also separates closely spaced targets and runs smooth in mineralized ground.
Fits the AT Series, Submersible to 10 ft
The Reaper bolts onto the AT Pro, AT Gold and AT Max with the 2-pin AT connector. The whole coil is waterproof to 10 ft, so wet grass, creeks and shallow water are no problem.
What's Included
Included with Your Purchase:
- Garrett 14 x 11 in DD Reaper search coil
- 14 x 11 in searchcoil cover
Specifications
| Coil Size | 14 in x 11 in |
| Coil Type | Double D (DD) |
| Shape | Semi-elliptical |
| Weight | 1.65 lbs out of box |
| Waterproof | Fully submersible to 10 ft (3 m) |
| Coil Cover | Included |
| Connector | 2-pin AT connector |
| Compatible Detectors | Garrett AT Pro, AT Gold and AT Max |
| Part Number | 2224100 |
| Country of Origin | USA, ISO 9001 |
| Warranty | 3 year limited |
FAQ
Q: Which detectors does the 14 x 11 in Reaper fit?
A: It fits the Garrett AT Pro, AT Gold and AT Max using the 2-pin AT coil connector. It is not made for the ACE or Apex series, which use a different connector.
Q: Is the Reaper coil waterproof?
A: Yes. The Reaper is fully submersible to 10 ft, the same depth rating as the AT series detectors, so it works in creeks, lakes and shallow surf.
Q: How much more ground does it cover than the stock coil?
A: About 25% more ground per sweep than the 8.5 x 11 in coil, which speeds up large field and open-ground searches.
Q: Will it still find small targets?
A: Yes. The Reaper adds depth on medium to large targets while keeping good detection on smaller coins and relics.
Q: Does it include a coil cover?
A: Yes. A matching 14 x 11 in searchcoil cover is included to protect the coil from wear.
Resources
Warranty
Garrett backs the 14 x 11 in Reaper search coil with a 3 year limited warranty against defects in materials and workmanship.
