Garrett ACE Apex Multi-Frequency Metal Detector

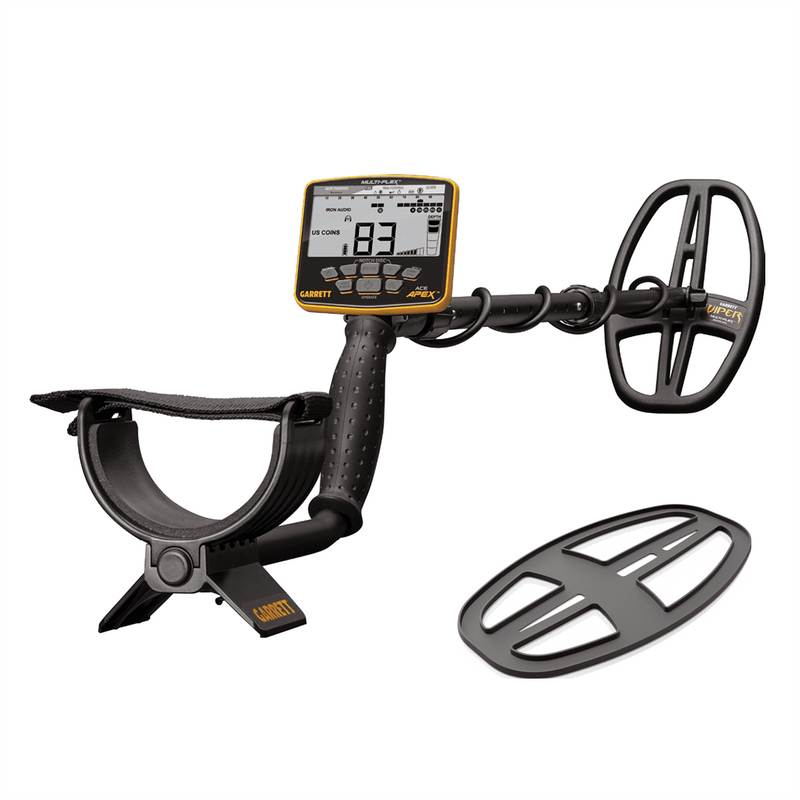

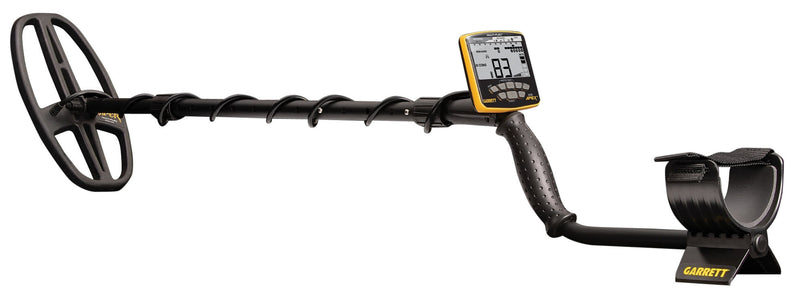

The Garrett ACE Apex is a simultaneous multi-frequency metal detector that brings Garrett's Multi-Flex technology to the ACE line. This configuration pairs the Apex with the larger 8.5 inch by 11 inch DD Raider waterproof searchcoil and its coil cover, so you get more ground coverage and depth than the standard coil. It is set up for coin shooting, jewelry hunting, relic recovery, beach detecting and shallow water searching.
Multi-Flex runs on a broad-bandwidth digital platform, so you can pick a single frequency of 5, 10, 15 or 20 kHz to favor a specific target, or switch to a simultaneous Multi-Frequency or Multi-Salt mode to read all targets in all soils. Six search modes, Zero, Coins, US Coins, Jewelry, Relics and Custom, plus Pinpoint, let you tune the Apex to the site, and the backlit LCD shows a large 0 to 99 target ID with coin depth.
The Apex stays light and simple in the field. It weighs 2.5 lbs (1.13 kg), the aluminum shaft adjusts from 40 inches to 53 inches (1.0 m to 1.35 m) and the built-in lithium-ion battery runs up to about 15 hours on a micro-USB charge. Built-in Z-Lynk wireless pairs with Garrett Z-Lynk headphones with no cord, and a 1/8 inch jack is there for wired headphones when you want them.
GeoWork Supply ships the ACE Apex with the Raider coil complete and ready to assemble. The owner's manual and the Garrett product page are linked in Resources below.
What's Included:
- Garrett ACE Apex detector
- 8.5 in x 11 in DD Raider waterproof searchcoil
- Raider coil cover
- Adjustable aluminum shaft with arm cuff
- Micro-USB charging cable
- Owner's manual
Features

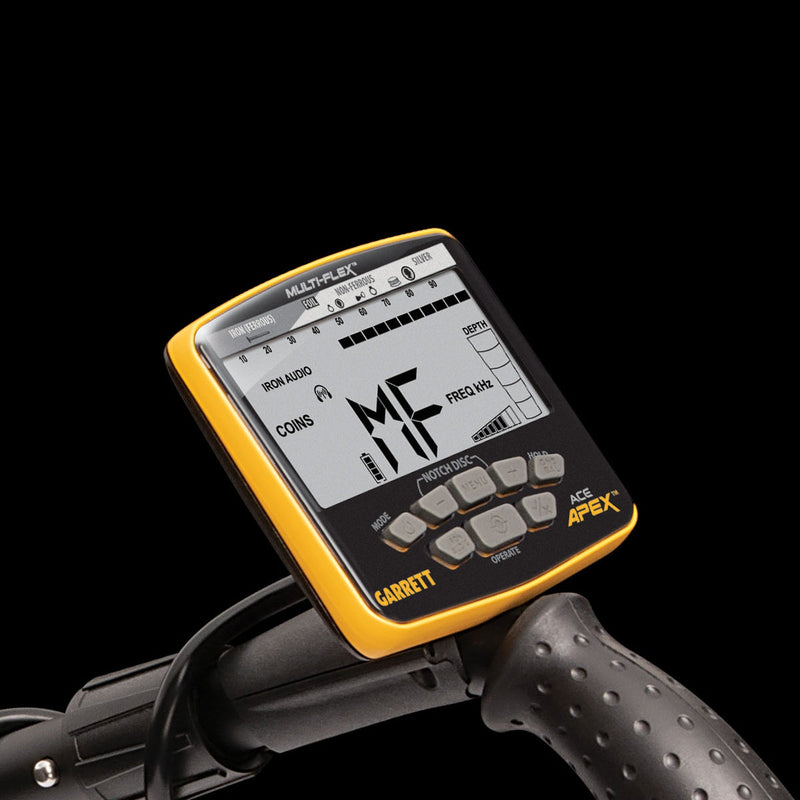

Multi-Flex Simultaneous Multi-Frequency
Multi-Flex lets the Apex run a single frequency to chase a specific target, or a simultaneous multi-frequency mode to read every target in every soil. Lower frequencies favor larger conductive finds, higher frequencies favor small low-conductivity targets like fine jewelry.

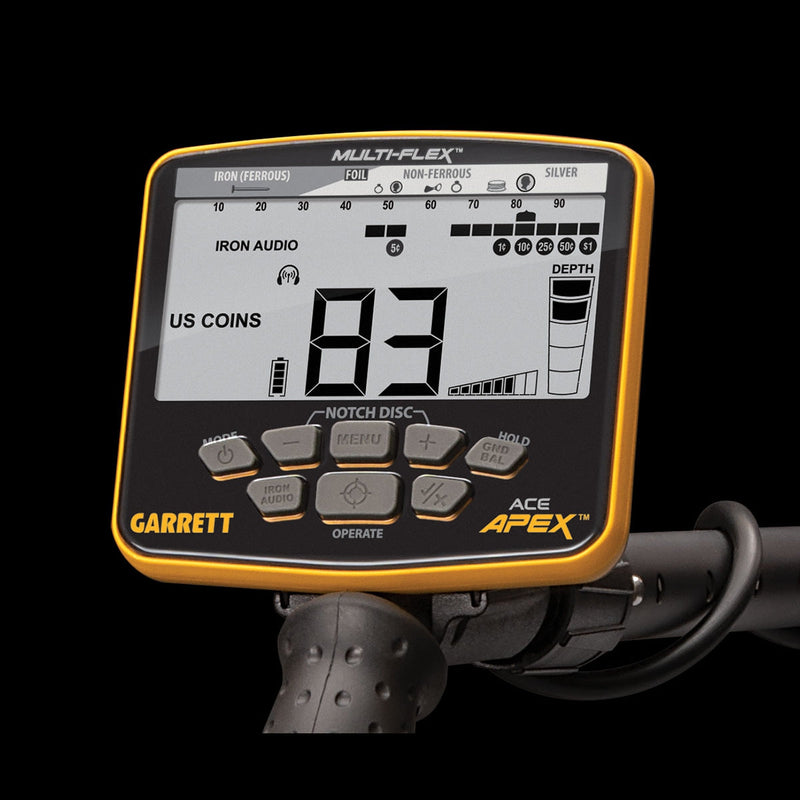

Six Search Modes, Pinpoint and 0 to 99 Target ID
Zero, Coins, US Coins, Jewelry, Relics and Custom modes plus Pinpoint cover most detecting situations. The backlit LCD shows a large 0 to 99 target ID, coin icons, a depth scale and the wireless and iron audio status at a glance.

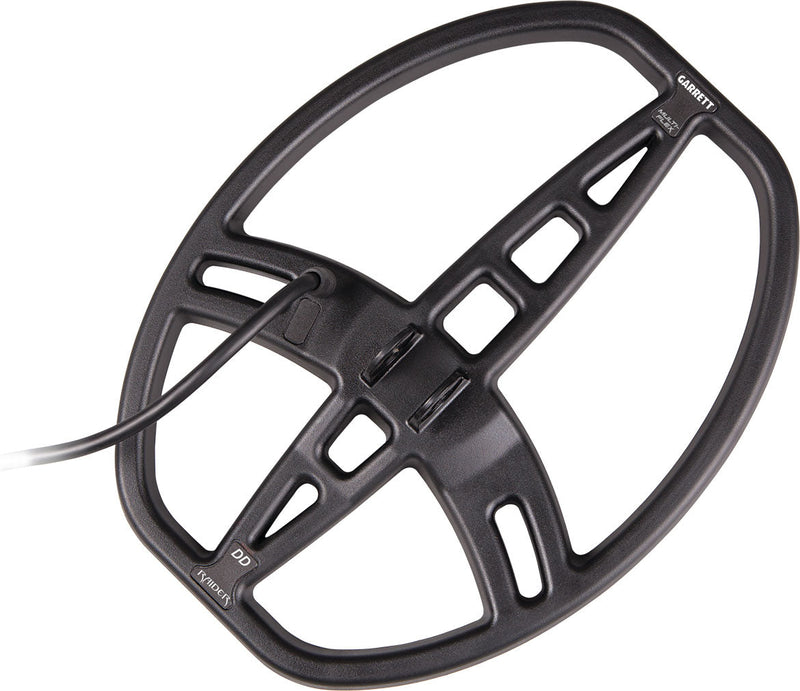

8.5 by 11 in DD Raider Submersible Searchcoil
This package includes the larger 8.5 inch by 11 inch DD Multi-Flex Raider coil with its coil cover. The Raider covers more ground and reaches deeper than the standard coil, and it is fully submersible for wet ground and shallow water.
Weatherproof for Shallow Water Searching
The Apex is weatherproof and the Raider searchcoil is submersible, so you can hunt creeks, lake edges and the surf line where coins and jewelry collect. Keep the control housing above the water line.
Four Multi-Flex Coil Options
Garrett offers four DD Multi-Flex coils for the ACE Apex. This package ships with the 8.5 inch by 11 inch Raider, and you can add a smaller Viper or Ripper coil or the larger Reaper coil later to match the coil to your ground and target size.

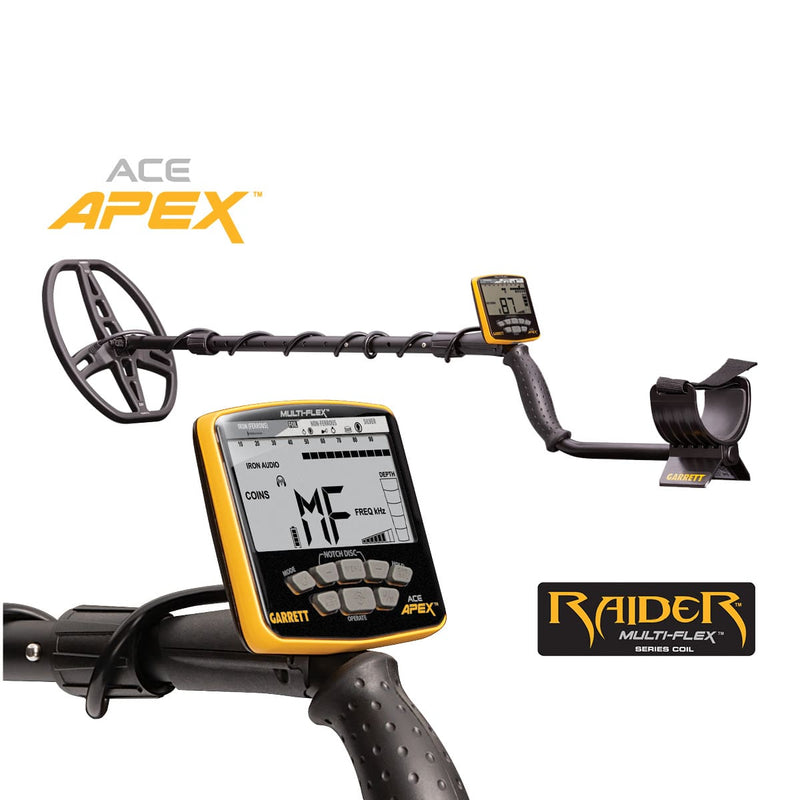

Built-in Z-Lynk Wireless and 15 Hour Battery
Built-in Z-Lynk wireless connects to Garrett Z-Lynk headphones with no cord and responds up to 6 times faster than standard Bluetooth. The built-in lithium-ion battery runs up to about 15 hours and charges over micro-USB.

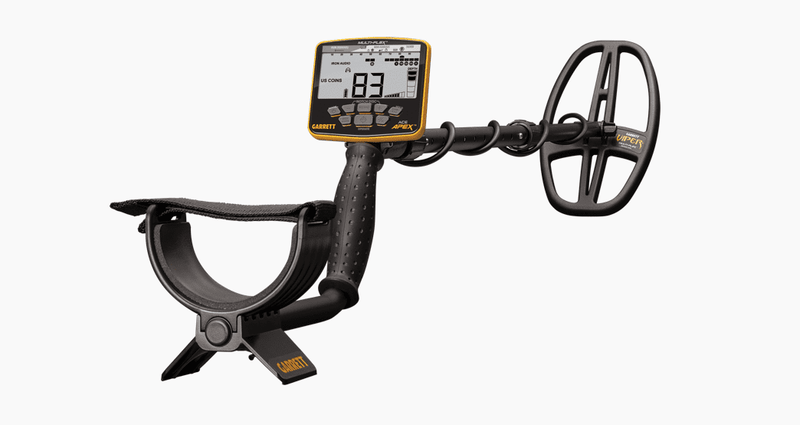

Made in the USA, 3 Year Warranty
The ACE Apex is designed and built by Garrett in Garland, Texas and is backed by a 3 year limited warranty. It is a long-running platform with strong parts and accessory support.
What's Included
Included with Your Purchase:
- Garrett ACE Apex detector (package 1142360)
- 8.5 in x 11 in DD Multi-Flex Raider waterproof searchcoil (PN 2223700)
- Raider searchcoil cover
- Adjustable lightweight aluminum shaft with cam locks
- Arm cuff with strap and detector stand
- 1/8 in headphone jack adapter
- Built-in rechargeable lithium-ion battery
- Micro-USB charging cable
- Owner's manual
Specifications
| Technology | Multi-Flex simultaneous multi-frequency |
| Operating Frequencies | 5, 10, 15 and 20 kHz, plus Multi-Frequency and Multi-Salt |
| Search Modes | 6 (Zero, Coins, US Coins, Jewelry, Relics, Custom) plus Pinpoint |
| Target ID | 0 to 99 numeric, large digits |
| Discrimination | 20 segment notch, including 8 iron |
| Ground Balance | 175 point resolution, ferrous ground to saltwater |
| Iron Audio | Yes, with adjustable iron volume |
| Audio | 5 tone, hybrid binary and proportional |
| Searchcoil | 8.5 in x 11 in DD Multi-Flex Raider, submersible |
| Display | Backlit LCD |
| Wireless | Built-in Z-Lynk |
| Headphone Jack | 1/8 in (3.5 mm) for wired headphones |
| Battery | Built-in rechargeable lithium-ion, up to 15 hours |
| Charging | Micro-USB cable |
| Length | 40 in to 53 in (1.0 m to 1.35 m) adjustable |
| Weight | 2.5 lbs (1.13 kg) |
| Warranty | 3 year limited, made in USA |
FAQ
Q: What coil comes with this ACE Apex package?
A: This package includes the larger 8.5 inch by 11 inch DD Multi-Flex Raider waterproof searchcoil with its coil cover, instead of the standard coil. The Raider covers more ground and reaches a little deeper.
Q: Does the ACE Apex come with headphones?
A: No. This configuration does not include headphones. The Apex has built-in Z-Lynk wireless for Garrett Z-Lynk headphones and a 1/8 inch jack for wired headphones, so you can add either later.
Q: What are the frequency options?
A: You can select a single frequency of 5, 10, 15 or 20 kHz, or run a simultaneous Multi-Frequency or Multi-Salt mode. Lower frequencies favor larger conductive targets and higher frequencies favor small low-conductivity targets.
Q: Is the ACE Apex waterproof?
A: The detector is weatherproof and the Raider searchcoil is fully submersible for wet ground and shallow water. The control housing is not submersible, so keep it above the water line.
Q: How long does the battery last?
A: The built-in rechargeable lithium-ion battery runs up to about 15 hours depending on your settings and charges with the included micro-USB cable.
Q: How much does it weigh and how far does it adjust?
A: The Apex weighs 2.5 lbs (1.13 kg) and the aluminum shaft adjusts from 40 inches to 53 inches (1.0 m to 1.35 m) to fit most users.
Warranty
Garrett backs the ACE Apex with a 3 year limited warranty against defects in materials and workmanship.
