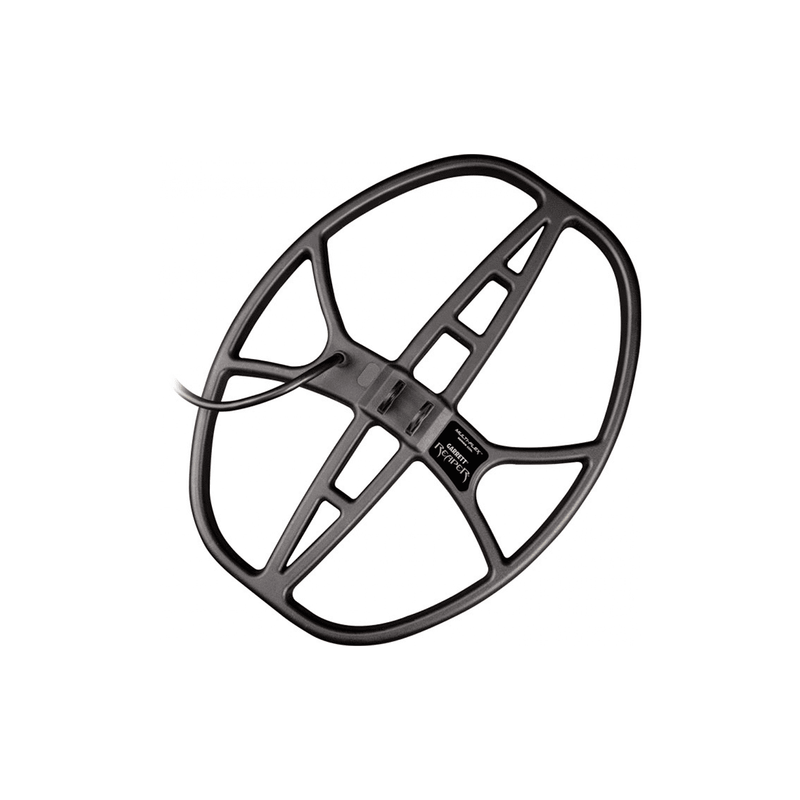

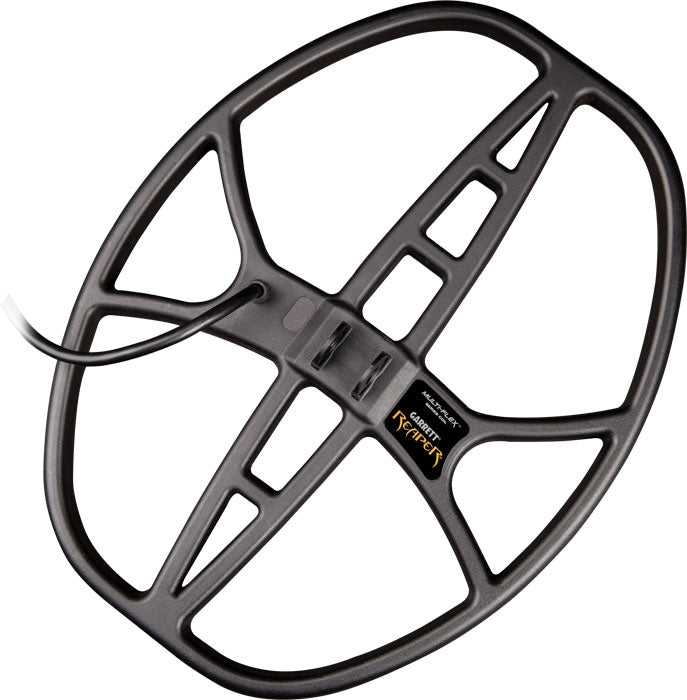

Garrett Apex 14 x 11 in Reaper Multi-Flex DD Search Coil
The Garrett Apex 14 x 11 in Reaper is a Multi-Flex DD searchcoil built for covering ground and reaching deep targets on the Garrett ACE Apex. Its large 14 x 11 in footprint sweeps a wide path, so it suits big open fields, cache hunting and swinging above tall grass or stubble.
Compared with the 8.5 x 11 in Raider coil, the Reaper adds about 25% more ground coverage and a real increase in detection depth on medium to large targets, while still detecting smaller targets well. The Double-D winding keeps target separation and target ID steady in ground with scattered iron and trash.
The Reaper is fully waterproof and can be submerged, so you can work the water's edge, shallow creeks and wet ground. It weighs about 1.55 lbs out of box and ships with a snap-on searchcoil cover to protect it over rocks and rough soil. The coil fits the Garrett ACE Apex only and is not compatible with older ACE detectors.
What's Included:
- Garrett Apex 14 x 11 in Reaper Multi-Flex DD searchcoil
- Reaper searchcoil cover
Features
Covers 25% More Ground
The 14 x 11 in footprint sweeps about 25% more ground per pass than the 8.5 x 11 in coil, which speeds up big fields and cache hunts.
Deeper on Medium to Large Targets
The Reaper adds real detection depth on medium to large targets while still detecting small targets, so you do not give up sensitivity for size.
DD Winding for Clean Separation
The Double-D coil pattern keeps target separation and target ID steady, which helps in ground with scattered iron and trash.
Waterproof and Field Ready
The Reaper is fully submersible for the water's edge and shallow water, and the included cover protects it over rocks and rough soil.
What's Included
Included with Your Purchase:
- Garrett Apex 14 x 11 in Reaper Multi-Flex DD searchcoil
- Reaper searchcoil cover
Specifications
| Coil Size | 14 x 11 in |
| Coil Type | DD Multi-Flex |
| Waterproof | Fully submersible searchcoil |
| Weight | About 1.55 lbs (out of box) |
| Fits | Garrett ACE Apex only |
| Includes | Reaper searchcoil cover |
| Part Number | 2223900 |
| Warranty | 3 year limited |
FAQ
Q: Which detectors does the Reaper coil fit?
A: The 14 x 11 in Reaper fits the Garrett ACE Apex only. Because of the Multi-Flex coil technology it does not work on older ACE detectors, and prior ACE coils do not work on the Apex.
Q: Is the Reaper coil waterproof?
A: Yes. The Reaper is a fully submersible searchcoil, so you can hunt the water's edge and shallow water. The Apex control housing itself is not waterproof.
Q: How much more ground does the Reaper cover?
A: The 14 x 11 in Reaper sweeps about 25% more ground per pass than the 8.5 x 11 in Raider coil, with added depth on medium to large targets.
Q: Does the Reaper come with a coil cover?
A: Yes. Every Garrett Apex searchcoil ships with a snap-on cover that protects the coil over rocks, gravel and rough soil.
Q: What is the Reaper coil part number?
A: The Garrett part number for the 14 x 11 in Reaper Multi-Flex DD searchcoil is 2223900.
Resources
Warranty
Garrett backs this Multi-Flex searchcoil with a 3 year parts and labor warranty against defects in materials and workmanship.
