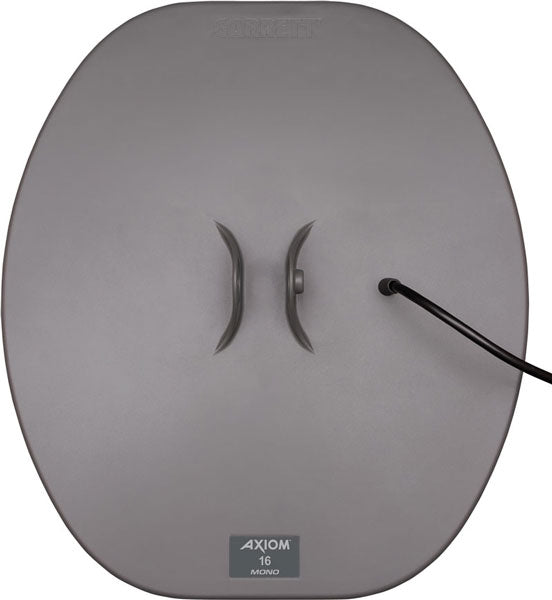

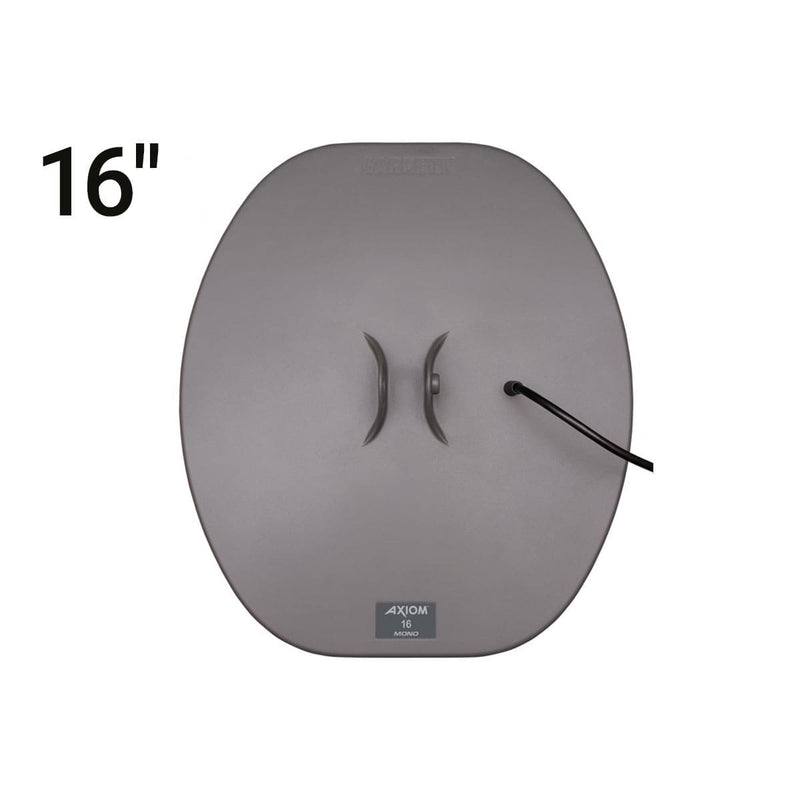

Garrett Axiom 16 x 14 in Mono Search Coil
The Garrett Axiom 16 x 14 in Mono search coil is the largest mono coil for the Garrett Axiom pulse induction gold detector, set up to push raw depth and cover open ground in a single pass. Mono coils transmit and receive on one winding, which gives the Axiom its deepest reach and its strongest pull on faint targets.
This size favors depth and coverage over fine handling. It is the coil for deep nugget patches, tailing piles and large washes where you want to reach targets a smaller coil walks over. A mono coil does not provide iron ID, so every signal is a target to check, which is the trade for the extra depth.
The coil is fully waterproof and submersible and ships with a snap on cover to guard the bottom from rock and abrasion. It fits the Garrett Axiom and carries Garrett's 3 year limited warranty.
What's Included:
- Garrett Axiom 16 x 14 in Mono search coil
- Snap on coil cover
Features
Maximum Depth and Sensitivity
The mono winding gives the Axiom its deepest reach and its strongest response to small, faint gold. At 16 x 14 in it concentrates that depth advantage into the largest coil in the range.
Cover Ground Fast
At 16 x 14 in this is the largest Axiom coil and the one that clears the most ground per sweep. It suits open washes, large patches and any site where coverage and depth matter more than tight handling.
Built for Pulse Induction Gold Hunting
Mono coils pair naturally with the Axiom Ultra-Pulse engine for nugget hunting in mineralized ground. They run hot and deep, so you reach the gold a discriminating coil would never sense.
Waterproof and Ready for the Garrett Axiom
The coil is fully waterproof and submersible for wet ground, creek edges and shallow water. It is designed for the Garrett Axiom and connects directly with no adapter.
What's Included
Included with Your Purchase:
- Garrett Axiom 16 x 14 in Mono search coil
- Snap on coil cover
Specifications
| Coil Size | 16 x 14 in |
| Configuration | Mono |
| Strength | Maximum depth and small gold sensitivity |
| Iron ID | None (mono coils do not run Iron Check) |
| Waterproof | Fully waterproof and submersible coil |
| Coil Cover | Included |
| Fits | Garrett Axiom |
| Part Number | 2237100 |
| Warranty | 3 year limited |
FAQ
Q: Which detector does the 16 x 14 in Mono coil fit?
A: It is built for the Garrett Axiom pulse induction gold detector and plugs straight in with no adapter.
Q: Should I pick the Mono or the DD-FC version of this coil?
A: Pick Mono for the deepest reach and the strongest response to small gold in clean to moderate ground. Pick DD-FC for better target separation, more stability in very hot soil and the Axiom Iron Check tone ID.
Q: Does the Mono coil give iron ID?
A: No. Mono coils trade iron ID for depth and sensitivity, so every target reads as a dig. For tone based iron ID you need a DD-FC coil.
Q: Why choose the 16 x 14 in size?
A: It is the largest Axiom coil and reaches the deepest while covering the most ground per sweep. Smaller coils give more sensitivity to tiny gold and handle better in tight spots.
Q: Is the coil waterproof and does it include a cover?
A: Yes. The coil is fully waterproof and submersible and ships with a snap on cover. The Axiom control housing is not submersible, so keep the control box dry.
Resources
Warranty
Garrett backs the Axiom search coils with a 3 year limited warranty against defects in materials and workmanship.
