Garrett Axiom International Package Gold Metal Detector
The Garrett Axiom International Package is a ground balancing pulse induction gold detector set up for travel and remote goldfields. This package pairs the Axiom with two searchcoils, the 13 inch by 11 inch Mono and the 11 inch by 7 inch DD-FC, so you can move between depth and target separation as the ground changes. It also adds a 12V vehicle charging kit and cables, an external AA battery booster pack and a soft travel pack so you can keep working far from a wall outlet.
At the core of the Axiom is Garrett's Ultra-Pulse Technology. Advanced pulse timings give it sensitivity across the full range of conditions, from black sand and hot rocks to wet saltwater beaches. Four search modes, Fine, Normal, Large and Salt, let you tune detection for sub-gram pickers up to large nuggets, while the Terra-Scan dual-channel ground balance tracks changing mineralization on its own.

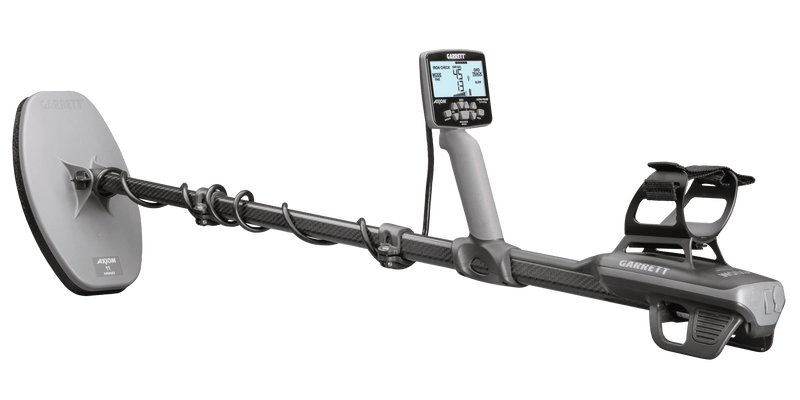

The Axiom is light and packable. It weighs 4.2 lbs (1.9 kg) with the 11 inch coil and collapses to 25 inches (63.5 cm) for travel. A built-in lithium-ion battery runs up to 16 hours, and the included AA booster pack adds about 6 more hours in the field. Built-in Z-Lynk wireless lets you pair Garrett Z-Lynk headphones with no cable, and you can choose PWM or VCO audio to match how you like to hear targets.
This is an advanced gold machine for prospectors who range across mineralized goldfields, desert washes and saltwater beaches far from power. GeoWork Supply ships the Axiom International Package complete and ready to assemble, with the owner's manual and quick start guide linked below.

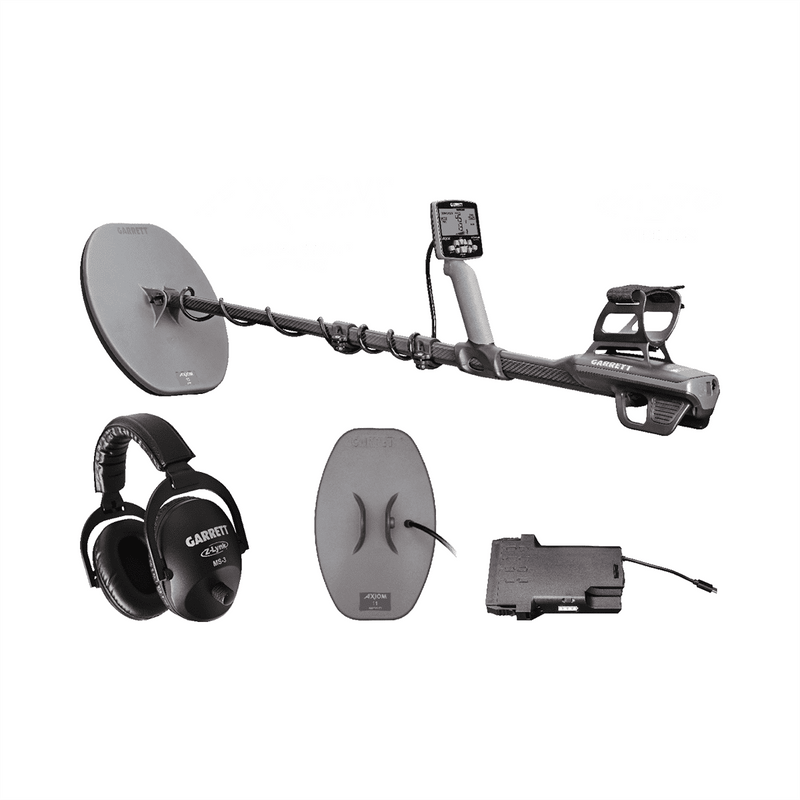

What's Included:
- Garrett Axiom detector
- 13 inch x 11 inch Mono searchcoil
- 11 inch x 7 inch DD-FC searchcoil
- 13 inch and 11 inch coil covers
- Control housing cover for rain and dust
- External AA battery booster pack

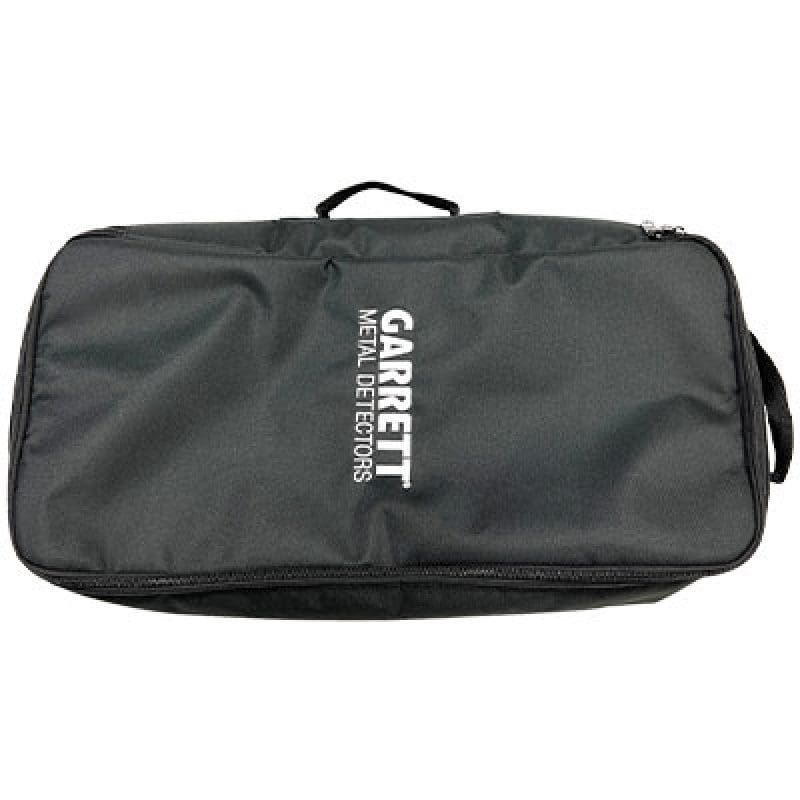

- Soft travel carry pack
- 12V vehicle charging kit and cables
- Wall charger with international adapters
Features
Ground Balancing Pulse Induction
The Axiom runs Garrett's Ultra-Pulse Technology, with advanced pulse timings that give it sensitivity and reach in extreme mineralized soils and in saltwater. The same technology helps it pull tiny gold from ground that overwhelms many detectors.

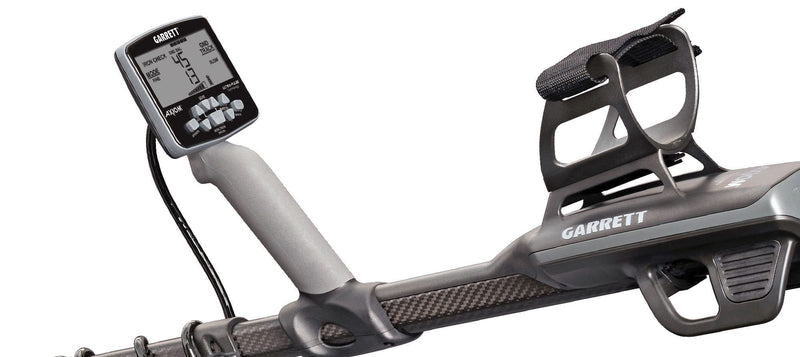

Terra-Scan Dual-Channel Ground Balance
Independent dual-channel ground balance covers the full range of mineralization, from magnetic black sand and hot rocks to saltwater. Four ground track options let the Axiom keep pace as conditions change.
Four Search Modes for Any Goldfield
Fine, Normal, Large and Salt each tune the Axiom for a different target and ground type, from sub-gram pickers in Fine to large nuggets in Large and wet salt beaches in Salt.

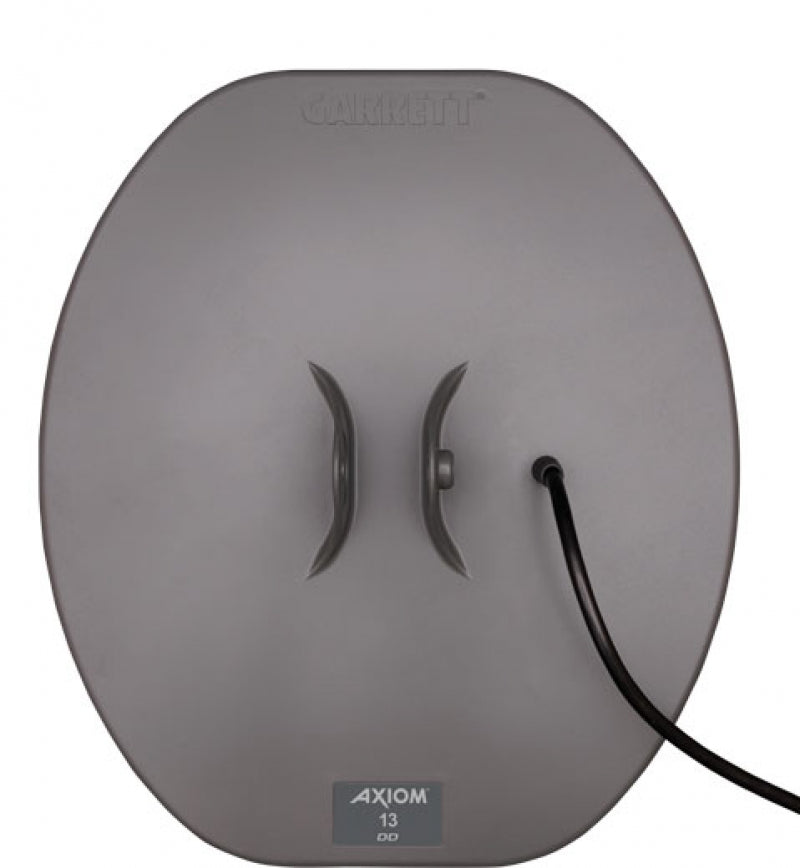

Two Coils Built for Travel
The International Package ships with the 13 inch by 11 inch Mono coil for depth and the 11 inch by 7 inch DD-FC coil for separation and iron check. Six Axiom coils are available, from 11 inch by 7 inch up to 16 inch by 14 inch in DD-FC or Mono.

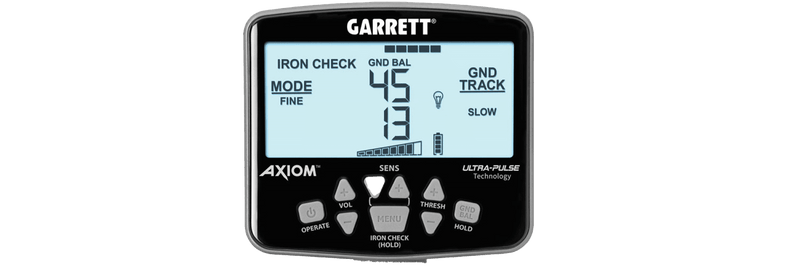

Quick Access Controls and Backlit Panel
Volume, iron check and threshold sit on dedicated buttons for fast changes in the field. A backlit control panel keeps every setting readable in low light.
Wireless Z-Lynk Audio, PWM or VCO
Built-in Z-Lynk wireless pairs with Garrett Z-Lynk headphones with no cable to snag, and a headphone jack is there for wired use. Choose PWM or VCO audio to match how you want targets to sound.
16 Hours of Power, Plus a Booster and 12V Kit
The built-in lithium-ion battery runs up to 16 hours, and the included AA booster pack adds about 6 more hours. The 12V charging kit and cables top the Axiom up from a vehicle, so a long trip away from power is covered.
Getting Started in the Field
Garrett's own walkthrough covers assembly, powering on and setting threshold, sensitivity and ground balance so you are detecting within minutes of opening the box.
What's Included
Included with Your Purchase:
- Garrett Axiom pulse induction detector
- Axiom 13 inch x 11 inch Mono searchcoil (PN 2236900)
- Axiom 11 inch x 7 inch DD-FC searchcoil (PN 2237400)
- 13 inch and 11 inch coil covers
- Control housing cover for rain and dust
- External AA battery booster pack (PN 2268200)
- Soft travel carry case (PN 1629300)
- 12V charging cables and adapter (PN 9445800 and 9445700)
- Wall charger with international adapters (PN 1629500)
Specifications
| Technology | Ground balancing pulse induction with Ultra-Pulse |
| Search Modes | 4 (Fine, Normal, Large, Salt) |
| Ground Balance | Terra-Scan dual-channel with 4 ground track options |
| Audio Tones | 2 (PWM and VCO) |
| Wireless Audio | Built-in Z-Lynk |
| Included Coils | 13 in x 11 in Mono and 11 in x 7 in DD-FC |
| Searchcoil Options | 6 (11x7, 13x11, 16x14 in DD-FC or Mono) |
| Battery | Built-in rechargeable lithium-ion, up to 16 hours |
| Battery Booster | External AA pack, adds about 6 hours |
| Vehicle Charging | 12V charging kit and cables included |
| Weight | 4.2 lbs (1.9 kg) with 11 in coil to 4.7 lbs (2.1 kg) with 13 in coil |
| Collapsed Length | 25 in (63.5 cm) |
| Iron Check | Tone ID on the DD-FC searchcoil |
| Warranty | 3 year limited |
FAQ
Q: How is the International Package different from the Standard Package?
A: The International Package ships with the 13 inch by 11 inch Mono coil and the 11 inch by 7 inch DD-FC coil, and it adds a 12V vehicle charging kit and cables for charging away from a wall outlet. The detector, Ultra-Pulse technology and search modes are the same.
Q: Is the Garrett Axiom waterproof?
A: The Axiom searchcoils are waterproof and built for wet ground and shallow water. The control housing is not submersible, and the package includes a control housing cover that protects it from rain and dust.
Q: What coils come with the International Package?
A: It includes the 13 inch by 11 inch Mono coil and the 11 inch by 7 inch DD-FC coil, both with covers. Six Axiom coil sizes are available in total, from 11 inch by 7 inch up to 16 inch by 14 inch in DD-FC or Mono.
Q: How long does the battery last and can I charge from a vehicle?
A: The built-in lithium-ion battery runs up to 16 hours on a charge, and the included AA booster pack adds about 6 more hours. The 12V charging kit and cables let you recharge from a vehicle in remote country.
Q: What are the four search modes?
A: Fine targets small low-conductivity gold, Normal balances all target sizes, Large favors bigger nuggets while cutting hot rocks and Salt is set up for wet salt beaches and salty goldfields.
Q: Does the International Package include headphones?
A: Built-in Z-Lynk wireless lets you pair Garrett Z-Lynk headphones, and a headphone jack supports wired sets. Confirm headphone contents with GeoWork Supply before you order if a set is required.
Resources
Warranty
Garrett backs the Axiom with a 3 year limited warranty against defects in materials and workmanship.
