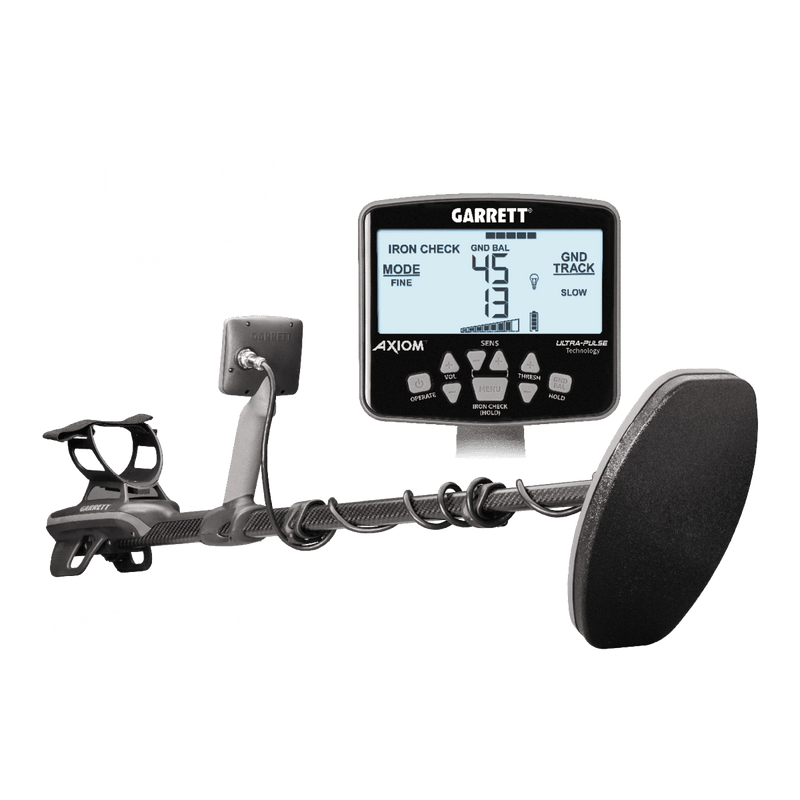

Garrett Axiom Lite Gold Metal Detector
The Garrett Axiom Lite is a ground balancing pulse induction gold detector that brings the core of the Axiom to a lighter single-coil setup at a lower cost. It ships with the 11 inch by 7 inch waterproof Mono searchcoil and runs the same Ultra-Pulse Technology as the full Axiom, so it can pull gold from sub-gram pickers up to large nuggets in heavily mineralized ground and saltwater.
Four search modes, Fine, Normal, Large and Salt, tune detection for different gold sizes and ground types, while the Terra-Scan dual-channel ground balance tracks changing mineralization on its own. PWM and VCO audio options let you choose how targets sound, and built-in Z-Lynk wireless connects to Garrett Z-Lynk headphones when you add them.
The Axiom Lite weighs 4.2 lbs (1.9 kg) with the 11 inch coil and collapses to 25 inches (63.5 cm), so it travels and stores easily. The built-in lithium-ion battery runs up to 16 hours on a charge, and an optional AA booster pack adds about 6 more hours when you are away from power.
The Lite leaves out the second coil, the headphones and the booster pack found in the larger Axiom packages, which keeps the price down for prospectors who want pulse induction performance without the extras. GeoWork Supply ships the Axiom Lite ready to assemble, with the owner's manual and quick start guide linked below.
What's Included:
- Garrett Axiom Lite detector
- 11 inch x 7 inch waterproof Mono searchcoil
- 11 inch coil cover
- Control housing cover for rain and dust
- Soft carry case
- Wall charger with international adapters
Features
Ultra-Pulse Technology
Advanced pulse timings give the Axiom Lite sensitivity and reach in extreme mineralized soils and in saltwater. The same pulse induction core in the full Axiom helps it pull tiny gold from ground that overwhelms many detectors.

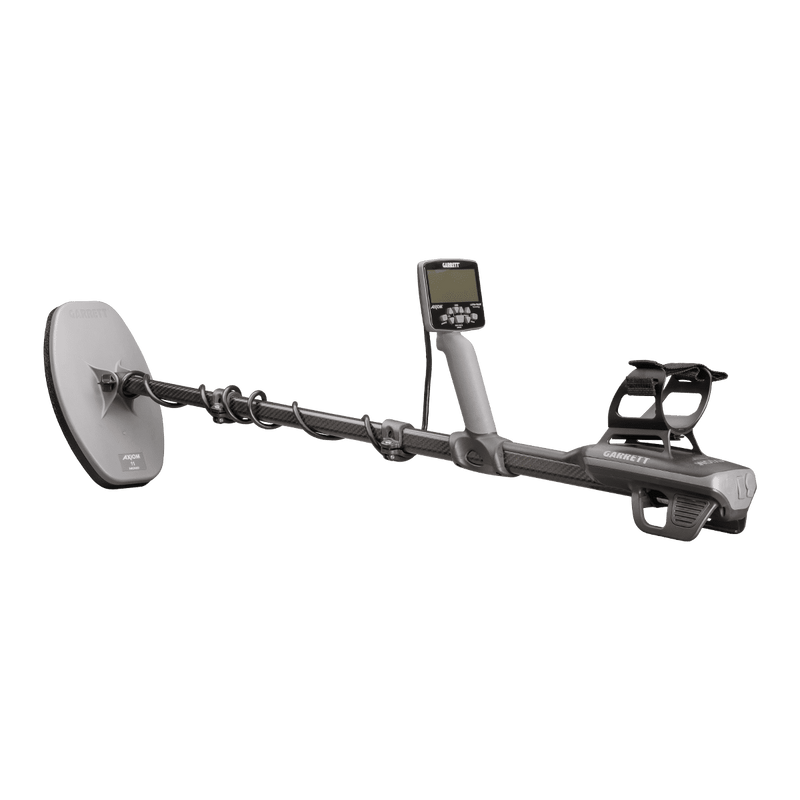

Light and Packable
The Axiom Lite weighs 4.2 lbs (1.9 kg) with the 11 inch coil and collapses to 25 inches (63.5 cm). It packs into the included soft carry case for travel and storage.

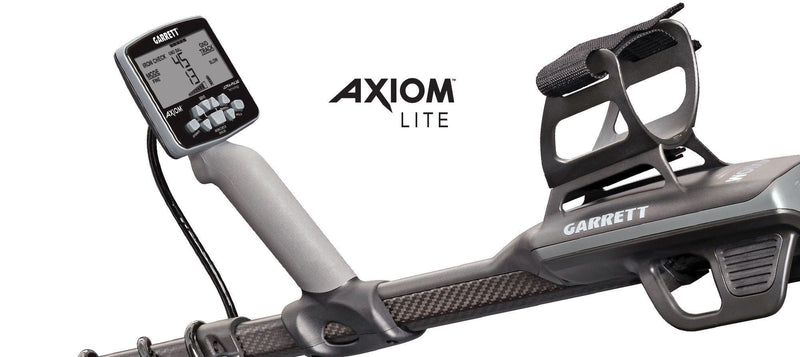

Terra-Scan Dual-Channel Ground Balance
Independent dual-channel ground balance covers the full range of mineralization, from magnetic black sand and hot rocks to saltwater. The Axiom Lite tracks changing ground so you can keep swinging without stopping to reset.
Four Search Modes for Gold
Fine, Normal, Large and Salt each tune the Axiom Lite for a different target and ground type, from sub-gram pickers in Fine to large nuggets in Large and wet salt ground in Salt.

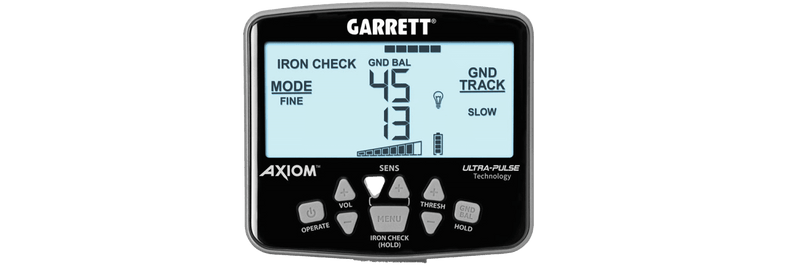

Quick Access Controls and Backlit Panel
Volume, iron check and threshold sit on dedicated buttons for fast changes in the field. A backlit control panel keeps every setting readable in low light.
PWM or VCO Audio with Built-in Z-Lynk
Choose PWM or VCO audio to match how you want targets to sound. Built-in Z-Lynk wireless pairs with Garrett Z-Lynk headphones when you add them, and a headphone jack supports wired sets.
Up to 16 Hours of Battery
The built-in high-capacity lithium-ion battery runs up to 16 hours on a charge. An optional AA booster pack adds about 6 more hours for long days away from power.
Getting Started in the Field
Garrett's own walkthrough covers assembly, powering on and setting threshold, sensitivity and ground balance so you are detecting within minutes of opening the box.
What's Included
Included with Your Purchase:
- Garrett Axiom Lite pulse induction detector

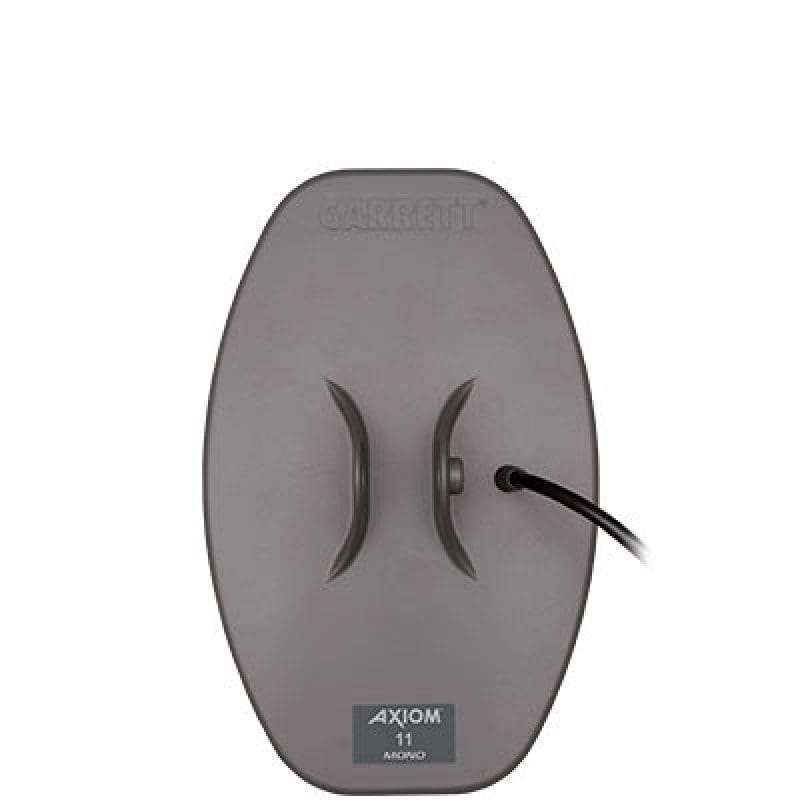

- Axiom 11 inch x 7 inch waterproof Mono searchcoil (PN 2237300)
- 11 inch coil cover (PN 9717500)
- Control housing cover for rain and dust
- Soft carry case (PN 1629300)

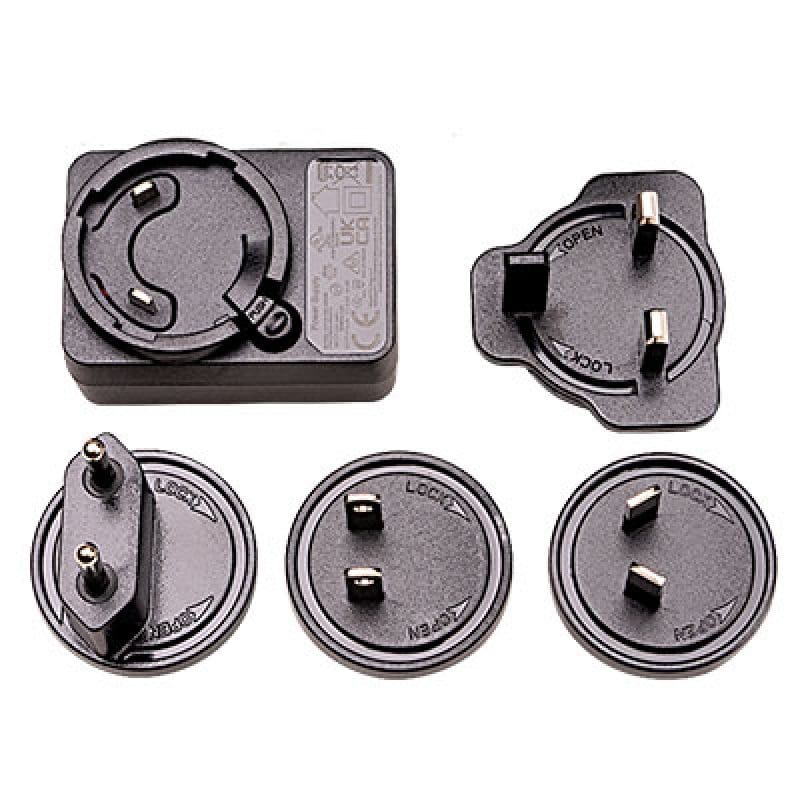

- Wall charger with international adapters, 100 to 240V USB-A 20W (PN 1629500)
- Built-in rechargeable lithium-ion battery
Specifications
| Technology | Ground balancing pulse induction with Ultra-Pulse |
| Search Modes | 4 (Fine, Normal, Large, Salt) |
| Ground Balance | Terra-Scan dual-channel |
| Audio Tones | 2 (PWM and VCO) |
| Wireless Audio | Built-in Z-Lynk, headphones sold separately |
| Included Coil | 11 in x 7 in waterproof Mono |
| Searchcoil Options | 6 (11x7, 13x11, 16x14 in DD-FC or Mono) |
| Battery | Built-in rechargeable lithium-ion, up to 16 hours |
| Battery Booster | Optional external AA pack, adds about 6 hours, sold separately |
| Weight | 4.2 lbs (1.9 kg) with 11 in coil |
| Collapsed Length | 25 in (63.5 cm) |
| Iron Check | Tone ID with a DD-FC searchcoil, sold separately |
| Headphones | Not included, built-in Z-Lynk wireless and headphone jack |
| Warranty | 3 year limited |
FAQ
Q: How is the Axiom Lite different from the full Axiom?
A: The Lite ships with a single 11 inch by 7 inch Mono coil and leaves out the second coil, the headphones and the battery booster pack found in the larger Axiom packages. The detector, Ultra-Pulse technology, Terra-Scan ground balance and four search modes are the same, which keeps the price down.
Q: Does the Axiom Lite come with headphones?
A: No. The Lite has built-in Z-Lynk wireless so you can pair Garrett Z-Lynk headphones, and a headphone jack for wired sets. Headphones are sold separately.
Q: Is the Axiom Lite waterproof?
A: The 11 inch by 7 inch Mono searchcoil is waterproof and built for wet ground and shallow water. The control housing is not submersible, and the Lite includes a control housing cover that protects it from rain and dust.
Q: How long does the battery last?
A: The built-in lithium-ion battery runs up to 16 hours on a charge. An optional AA booster pack adds about 6 more hours when you are away from power, and it is sold separately.
Q: What are the four search modes?
A: Fine targets small low-conductivity gold, Normal balances all target sizes, Large favors bigger nuggets while cutting hot rocks and Salt is set up for wet salt ground and salty goldfields.
Q: How heavy is the Axiom Lite and is it good for travel?
A: It weighs 4.2 lbs (1.9 kg) with the 11 inch coil and collapses to 25 inches (63.5 cm), and the included soft carry case holds it for transport and storage.
Resources
Warranty
Garrett backs the Axiom Lite with a 3 year limited warranty against defects in materials and workmanship.
