Garrett Axiom Standard Package Metal Detector
The Garrett Axiom Standard Package is a ground balancing pulse induction gold detector built for finding gold of every size in heavily mineralized ground. This package pairs the Axiom with two searchcoils, the 13 inch by 11 inch DD-FC and the 11 inch by 7 inch Mono, so you can switch between depth and separation as the ground changes. It also includes Garrett MS-3 Z-Lynk wireless headphones, a soft travel pack, an external battery booster pack and charging cables.
At the core of the Axiom is Garrett's Ultra-Pulse Technology. Advanced pulse timings give it sensitivity across the full range of conditions, from black sand and hot rocks to wet saltwater beaches. Four search modes, Fine, Normal, Large and Salt, let you tune detection for sub-gram pickers up to large nuggets, while the Terra-Scan dual-channel ground balance tracks changing mineralization on its own.
The Axiom is light and packable. It weighs 4.2 lbs (1.9 kg) with the 11 inch coil and collapses to 25 inches (63.5 cm) for travel. A built-in lithium-ion battery runs up to 16 hours, and the included AA booster pack adds about 6 more hours in the field. Built-in Z-Lynk wireless connects to the MS-3 headphones with no cable, and you can choose PWM or VCO audio to match how you like to hear targets.
This is an advanced gold machine for prospectors who hunt mineralized goldfields, desert washes and saltwater beaches. GeoWork Supply ships the Axiom Standard Package complete and ready to assemble, with the owner's manual and quick start guide linked below.

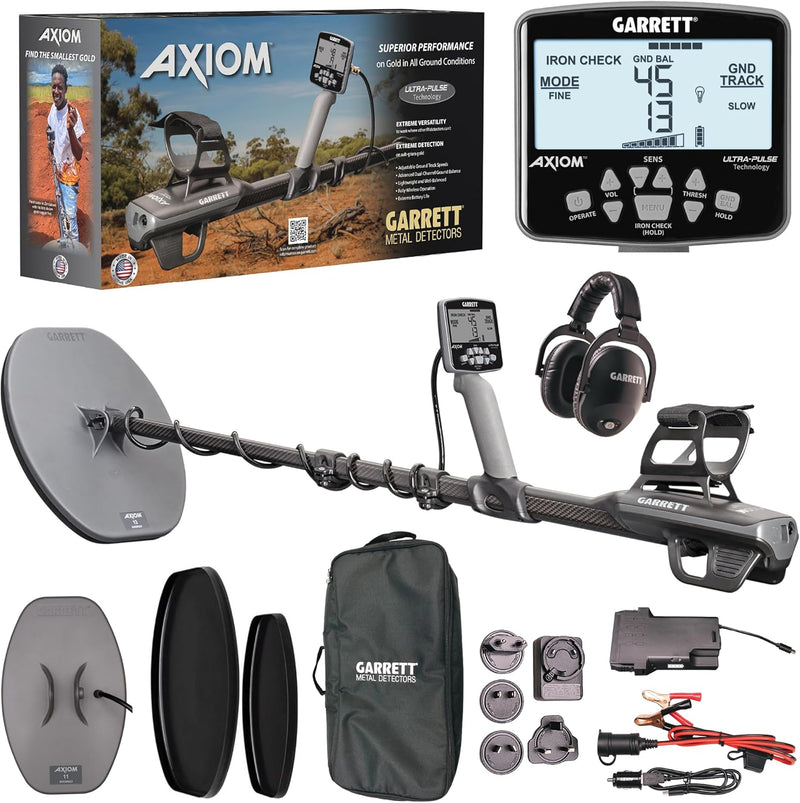

What's Included:
- Garrett Axiom detector
- 13 inch x 11 inch DD-FC searchcoil
- 11 inch x 7 inch Mono searchcoil
- 13 inch and 11 inch coil covers
- Garrett MS-3 Z-Lynk wireless headphones
- Soft travel carry case
- External AA battery booster pack
- Wall charger, 12V cables and adapters
Features
Ultra-Pulse Technology
Advanced pulse timings give the Axiom sensitivity and reach in extreme mineralized soils and in saltwater. The same technology helps it pull tiny gold from ground that overwhelms many detectors.
Terra-Scan Dual-Channel Ground Balance
Independent dual-channel ground balance covers the full range of mineralization, from magnetic black sand and hot rocks to saltwater. Four ground track options let the Axiom keep pace as conditions change.
Four Search Modes for Any Goldfield
Fine, Normal, Large and Salt each tune the Axiom for a different target and ground type, from sub-gram pickers in Fine to large nuggets in Large and wet salt beaches in Salt.
Quick Access Controls and Backlit Panel

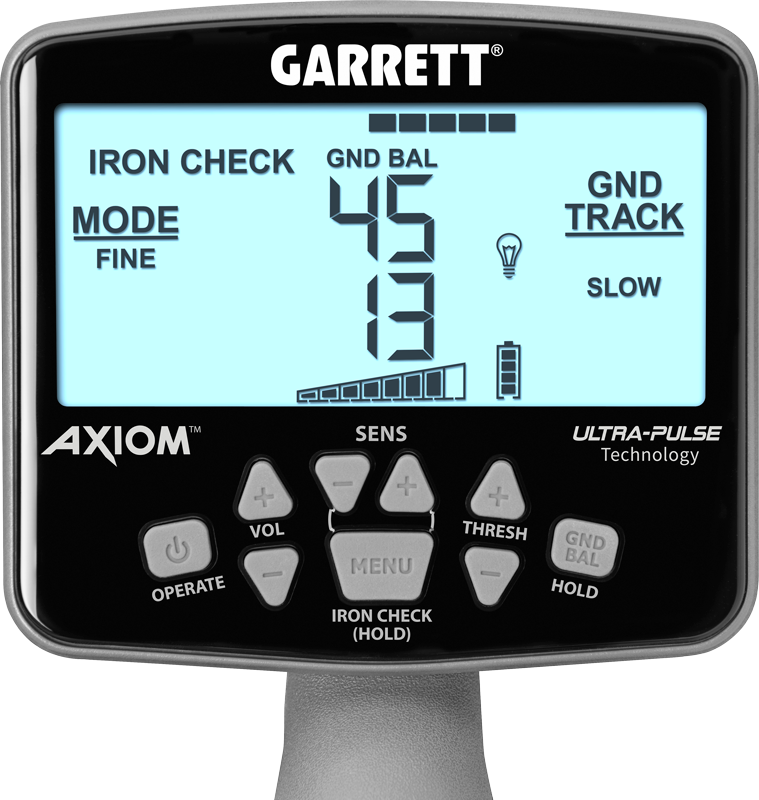

Volume, iron check and threshold sit on dedicated buttons for fast changes in the field. A backlit control panel keeps every setting readable in low light.
Wireless Z-Lynk Audio, PWM or VCO
Built-in Z-Lynk wireless pairs with the included MS-3 headphones with no cable to snag. Choose PWM or VCO audio to match how you want targets to sound.
Up to 16 Hours, Plus a Booster Pack
The built-in lithium-ion battery runs up to 16 hours on a charge. When you need more, the included AA booster pack adds about 6 hours so a long day in remote country is covered.

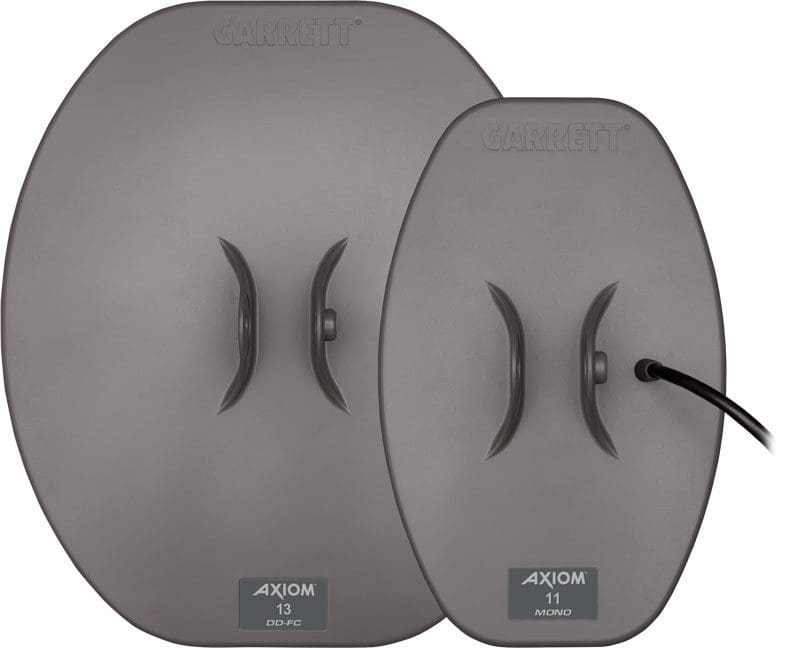

Two Coils Included, Six to Choose From
The package ships with the 13 inch by 11 inch DD-FC and the 11 inch by 7 inch Mono coils. Six coil options run from 11 inch by 7 inch up to 16 inch by 14 inch in DD-FC or Mono, so you can match coil to ground and target size.
What's Included
Included with Your Purchase:
- Garrett Axiom pulse induction detector
- Axiom 13 inch x 11 inch DD-FC searchcoil (PN 2237000)
- Axiom 11 inch x 7 inch Mono searchcoil (PN 2237300)
- 13 inch and 11 inch coil covers
- Control housing cover for rain and dust

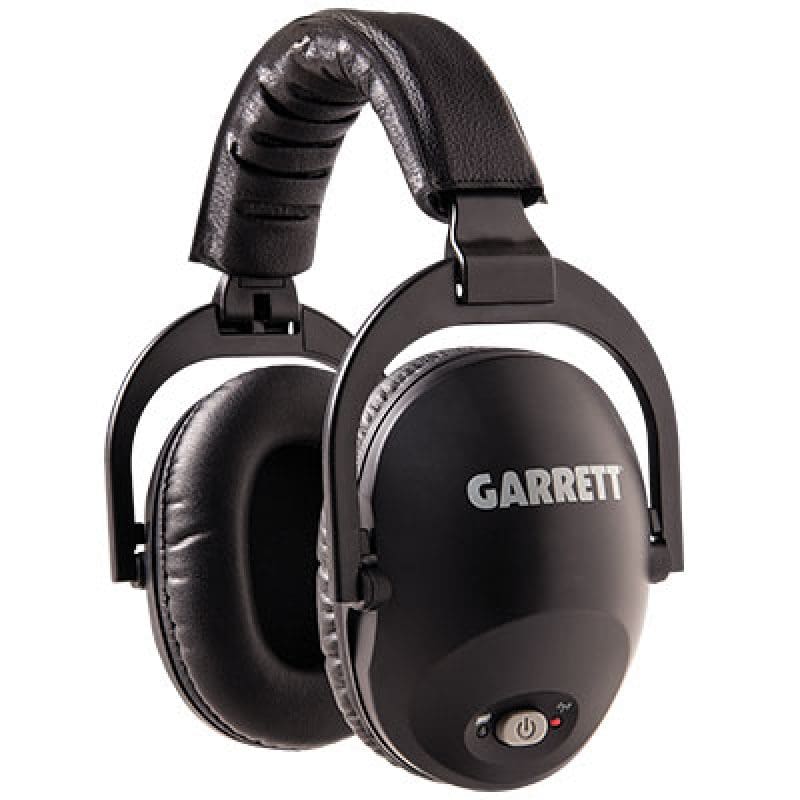

- Garrett MS-3 Z-Lynk wireless headphones (PN 1627700)

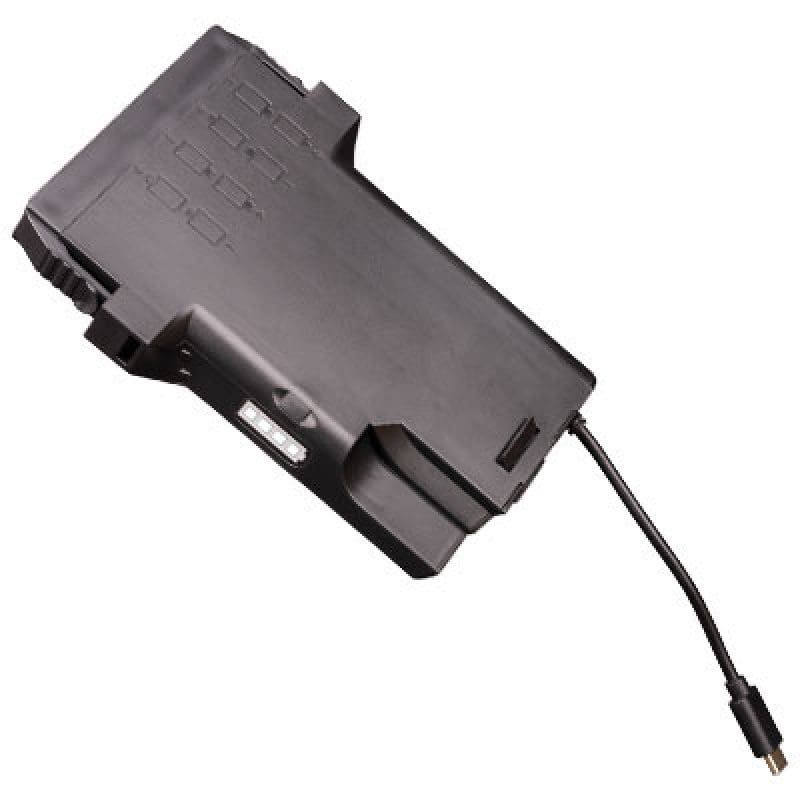

- External AA battery booster pack (PN 2268200)

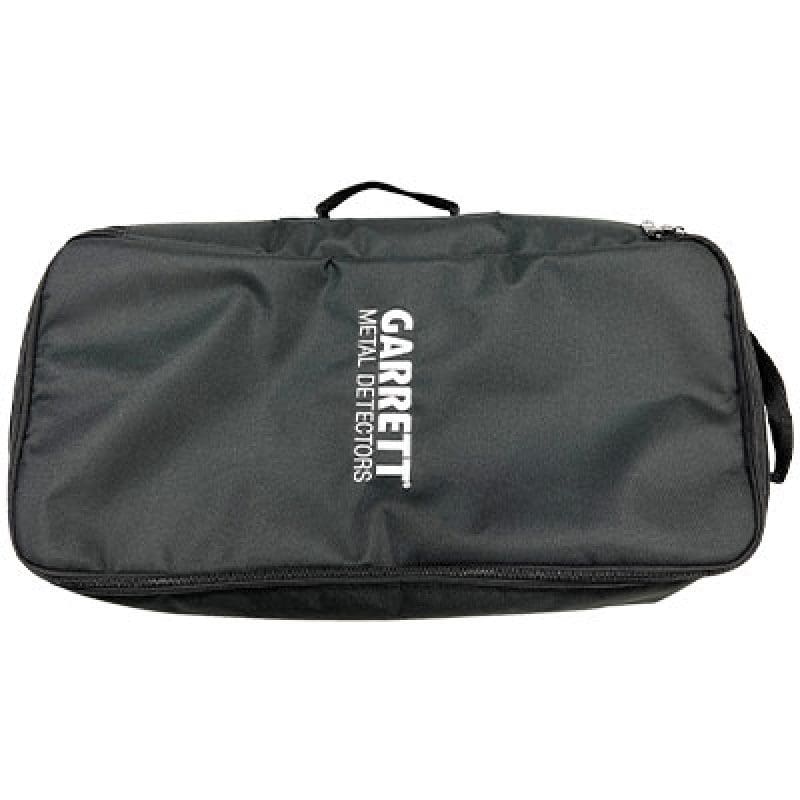

- Soft travel carry case (PN 1629300)

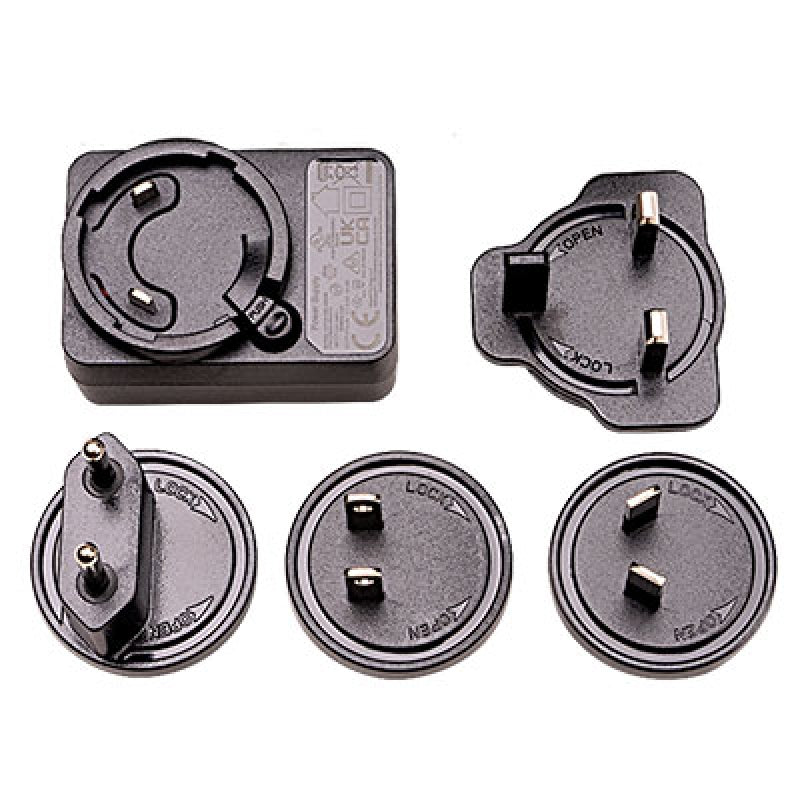

- Wall charger with adapters (PN 1629500)
- 12V charging cables and adapter
Specifications
| Technology | Ground balancing pulse induction with Ultra-Pulse |
| Search Modes | 4 (Fine, Normal, Large, Salt) |
| Ground Balance | Terra-Scan dual-channel with 4 ground track options |
| Audio Tones | 2 (PWM and VCO) |
| Wireless Audio | Built-in Z-Lynk |
| Included Coils | 13 in x 11 in DD-FC and 11 in x 7 in Mono |
| Searchcoil Options | 6 (11x7, 13x11, 16x14 in DD-FC or Mono) |
| Battery | Built-in rechargeable lithium-ion, up to 16 hours |
| Battery Booster | External AA pack, adds about 6 hours |
| Weight | 4.2 lbs (1.9 kg) with 11 in coil to 4.7 lbs (2.1 kg) with 13 in coil |
| Collapsed Length | 25 in (63.5 cm) |
| Iron Check | Tone ID on DD-FC searchcoils |
| Headphones | Garrett MS-3 Z-Lynk wireless |
| Warranty | 3 year limited |
FAQ
Q: Is the Garrett Axiom waterproof?
A: The Axiom searchcoils are waterproof and built for wet ground and shallow water. The control housing is not submersible, and the package includes a control housing cover that protects it from rain and dust.
Q: What coils come with the Axiom Standard Package?
A: It includes the 13 inch by 11 inch DD-FC coil and the 11 inch by 7 inch Mono coil, both with covers. Six Axiom coil sizes are available in total, from 11 inch by 7 inch up to 16 inch by 14 inch in DD-FC or Mono.
Q: How long does the battery last?
A: The built-in lithium-ion battery runs up to 16 hours on a charge. The included AA booster pack adds about 6 more hours when you are away from power.
Q: What are the four search modes?
A: Fine targets small low-conductivity gold, Normal balances all target sizes, Large favors bigger nuggets while cutting hot rocks and Salt is set up for wet salt beaches and salty goldfields.
Q: Can the Axiom be used on saltwater beaches?
A: Yes. Salt mode and the Terra-Scan dual-channel ground balance handle wet salt, and pulse induction keeps working in mineralized sand where many detectors struggle.
Q: Is the Axiom good for travel?
A: It collapses to 25 inches (63.5 cm) and weighs 4.2 lbs (1.9 kg) with the 11 inch coil, and the soft travel pack holds the detector and both coils for transport.
Resources
Warranty
Garrett backs the Axiom with a 3 year limited warranty against defects in materials and workmanship.
