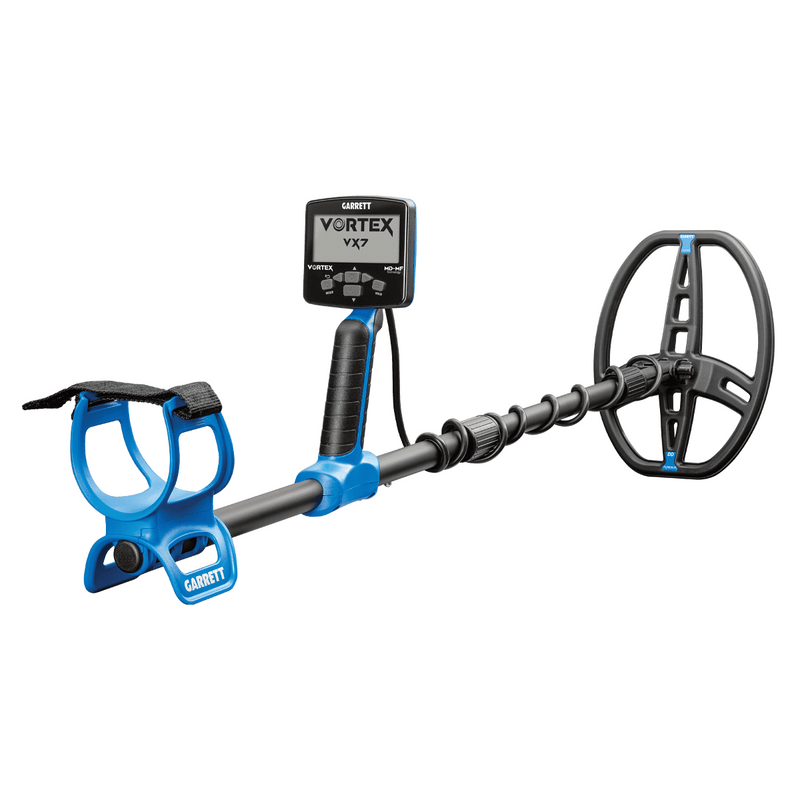

Garrett Vortex VX7 Multi-Frequency Waterproof Metal Detector
The Garrett Vortex VX7 is the mid model in Garrett's waterproof Vortex series, a multi-frequency detector for coin, relic, jewelry and beach hunters who want more reach than the VX5 without stepping up to the VX9. It runs Garrett's MD-MF multi-frequency technology with four frequency options and a two-tier target ID, and the whole detector is submersible to 16 feet (5 meters).
In multi-frequency the VX7 offers traditional Multi for general hunting and Multi-Salt for wet salt sand and surf. You can also lock onto a single 5 kHz or 13 kHz frequency to favor a target type. Five search modes cover Zero Discrimination, Beach, Standard, USA Coins and Custom, and adjustable recovery speed with eight levels of iron volume helps you separate close targets and quiet the trash. The two-tier MD-MF scale shows separate ferrous and non-ferrous readings for clearer dig decisions.

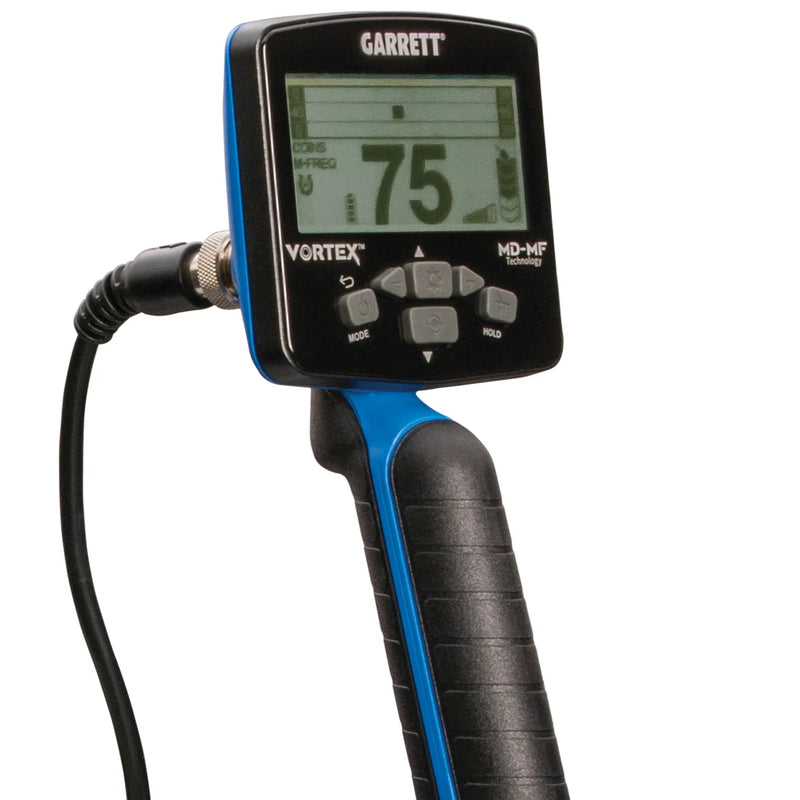

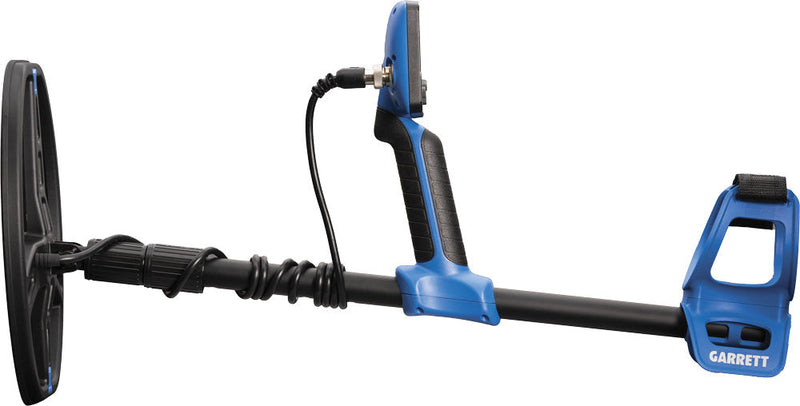

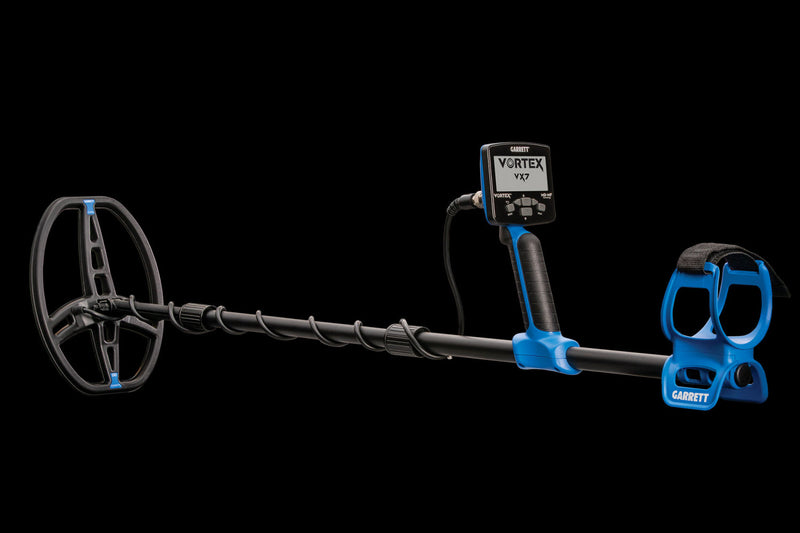

The VX7 reads on a backlit LCD, balances across 175 points of ground resolution from ferrous soil to saltwater and runs about 15 hours on its built-in lithium-ion battery over a high-speed USB-C cable. It weighs 3 lbs (1.38 kg) with the coil cover installed and collapses from 56.75 in (144.14 cm) down to 24.75 in (62.86 cm). Built-in Z-Lynk wireless pairs with Garrett MS-3 or CS-3 headphones with no cable.
Every Vortex shares the same hardware, so the VX7 is software upgradeable to VX9 features later. GeoWork Supply ships the VX7 with the 8.5 in by 11 in DD Raider waterproof coil and charging cable, ready to assemble, with the user manual linked below.
What's Included:
- Garrett Vortex VX7 metal detector
- 8.5 in x 11 in DD Raider waterproof searchcoil with cover
- High-speed USB-C charging and data cable
- Armrest strap
- Quick start guide
- Access to Garrett online training videos
Features

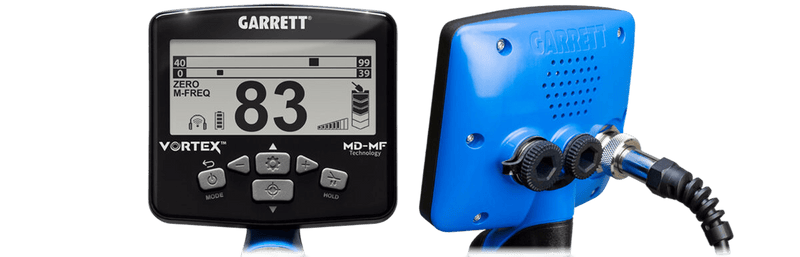

Four Frequency Options
Run a single 5 kHz or 13 kHz frequency, or search with one of two simultaneous multi-frequency modes, Multi for general ground or Multi-Salt for the beach. The extra modes over the VX5 add the salt capability serious beach hunters want.
Two-Tier MD-MF Target ID
In multi-frequency the VX7 shows separate ferrous and non-ferrous target scales. Complex targets can read on both at once, so you can tell iron trash from good non-ferrous finds before you dig.
Five Search Modes including Beach
Choose from Zero Discrimination, Beach, Standard, USA Coins and Custom. Beach mode tunes the VX7 for wet sand and saltwater, while Standard handles relics, jewelry and most international coins.
Multi-Salt Operation, Submersible to 16 ft
Multi-Salt and Beach mode keep target ID accurate on wet salt beaches and in the surf. The whole detector is submersible to 16 feet (5 meters) for streams, lakes and the ocean coast.
Adjustable Recovery Speed and Iron Volume
Select Standard or Fast recovery speed to separate adjacent targets in trashy ground, and set iron volume across eight levels to quiet ferrous junk while keeping good targets loud.
Built-in Z-Lynk Wireless and All-Day Battery
Z-Lynk wireless is built in for cordless audio with Garrett MS-3 or CS-3 headphones, sold separately. The built-in lithium-ion battery runs about 15 hours per charge over a high-speed USB-C cable.
What's Included
Included with Your Purchase:
- Garrett Vortex VX7 metal detector

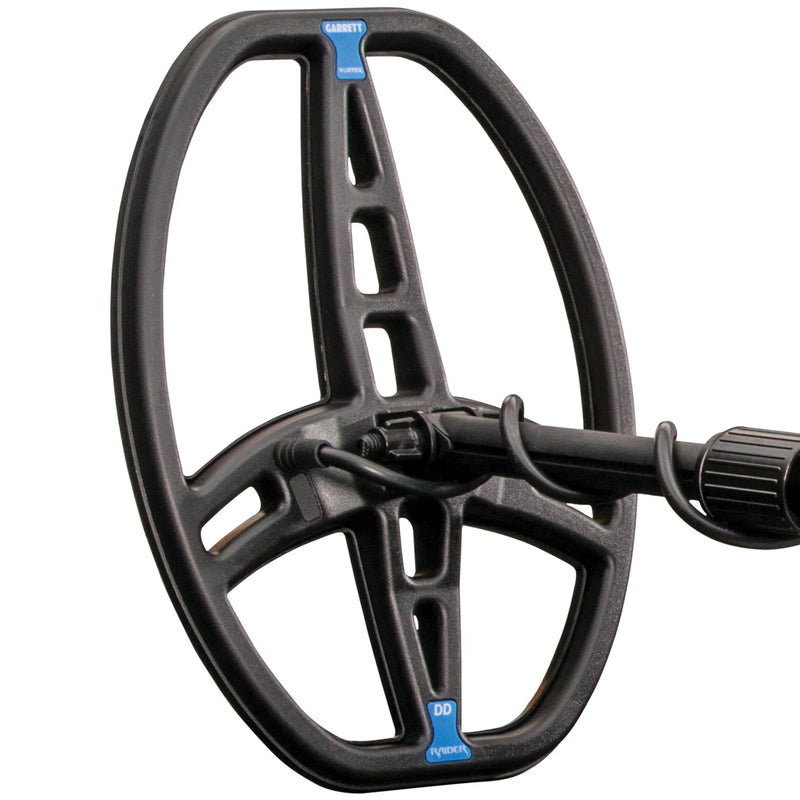

- 8.5 in x 11 in DD Raider waterproof searchcoil (PN 2238400) with cover
- High-speed USB-C charging and data cable
- Armrest strap
- Quick start guide
- Access to Garrett online training videos
- 3 year limited warranty
Specifications
| Technology | MD-MF multi-frequency |
| Operating Frequencies | 5, 13 kHz plus Multi and Multi-Salt |
| Search Modes | 5 (Zero Discrimination, Beach, Standard, USA Coins, Custom) |
| Target ID | Two-tier MD-MF scale (ferrous and non-ferrous) |
| Audio Tones | 3 and 5 tone |
| Recovery Speed | 2 settings (Standard, Fast) |
| Iron Volume | 8 levels |
| Ground Balance | Hi-resolution, 175 points |
| Sensitivity | 8 levels |
| Searchcoil | 8.5 in x 11 in DD Raider, waterproof |
| Waterproof | Submersible to 16 ft (5 m) |
| Wireless Audio | Built-in Z-Lynk |
| Display | Backlit LCD |
| Battery | Built-in lithium-ion, about 15 hours per charge |
| Length | 24.75 in (62.86 cm) to 56.75 in (144.14 cm) |
| Weight | 3 lbs (1.38 kg) with coil cover |
| Warranty | 3 year limited |
FAQ
Q: Is the Garrett Vortex VX7 waterproof?
A: Yes. The VX7 is submersible to 16 feet (5 meters), coil and control housing sealed. For underwater audio you add submersible headphones, since the built-in speaker and Z-Lynk wireless are for above-water use.
Q: What frequencies does the VX7 use?
A: It offers four options, two single frequencies at 5 kHz and 13 kHz plus two simultaneous multi-frequency modes, Multi for general hunting and Multi-Salt for saltwater beaches.
Q: How is the VX7 different from the VX5 and VX9?
A: The VX7 adds Multi-Salt, Beach mode, a two-tier target ID and adjustable recovery speed over the VX5. The VX9 goes further with more frequencies, Thin Coins and Fast modes and a three-tier scale. All three share hardware and upgrade by software.
Q: Can the VX7 be used on saltwater beaches?
A: Yes. Beach mode and Multi-Salt operation hold a smooth threshold and accurate target ID on wet salt sand and in the surf, which the VX5 does not offer.
Q: What coil comes with the VX7?
A: It ships with the 8.5 inch by 11 inch DD Raider waterproof searchcoil and cover. Other Vortex Raider and Reaper coils are available, including underwater-connector versions for diving.
Q: Can I upgrade the VX7 to a VX9 later?
A: Yes. Because the Vortex models share the same hardware, a VX7 can be converted to VX9 features with a Garrett software upgrade, adding frequencies, modes and target ID detail.
Warranty
Garrett backs the Vortex VX7 with a 3 year limited warranty against defects in materials and workmanship.
