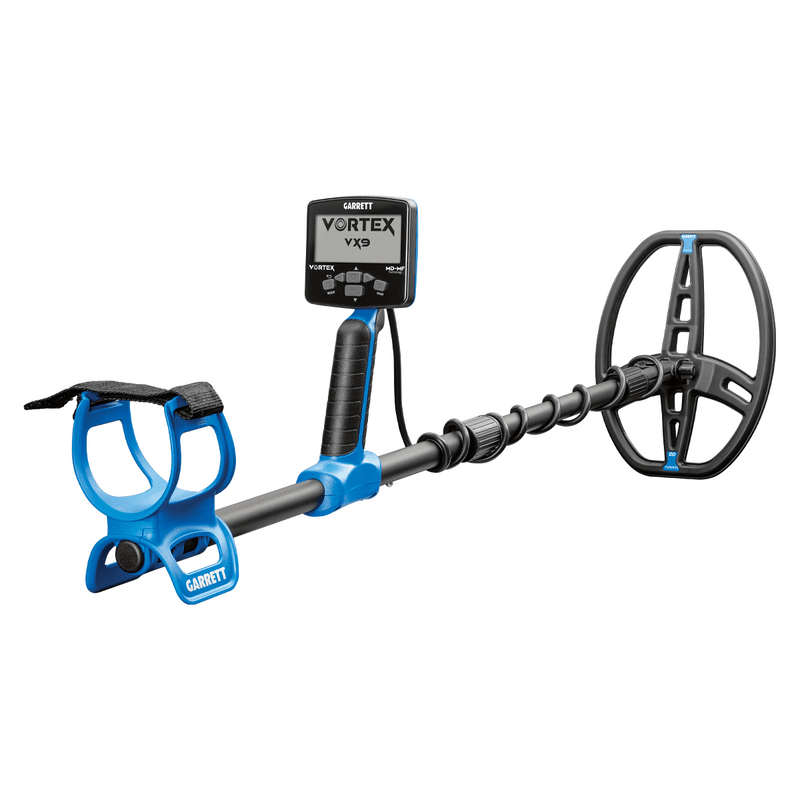

Garrett Vortex VX9 Multi-Frequency Waterproof Metal Detector

The Garrett Vortex VX9 is the top model in Garrett's waterproof Vortex series, a multi-frequency detector built for coin, relic, jewelry and beach hunters who want the full feature set. It pairs Garrett's MD-MF multi-frequency technology with seven frequency options and a three-tier target ID display, and the whole detector is submersible to 16 feet (5 meters) so you can work dry land, the surf and shallow water with one machine.

In multi-frequency the VX9 runs the traditional Multi mode for general hunting or Multi-Salt for wet salt sand and surf. You can also lock onto a single frequency of 5, 9, 13, 18 or 25 kHz to favor a target type. Seven search modes cover the field, including Thin Coins for hammered silver and thin gold, Fast for trashy and competition sites, Beach for salt conditions plus Zero Discrimination, Standard, USA Coins and Custom. Three recovery speeds and eight levels of iron volume let you separate close targets and quiet the trash.

The VX9 reads its three-tier MD-MF scale on a backlit LCD, balances across 175 points of ground resolution from ferrous soil to saltwater and runs about 15 hours on its built-in lithium-ion battery over a high-speed USB-C cable. It weighs 3 lbs (1.38 kg) with the coil cover installed and collapses from 56.75 in (144.14 cm) down to 24.75 in (62.86 cm) for transport. Built-in Z-Lynk wireless connects to Garrett MS-3 or CS-3 headphones with no cable.

Because every Vortex shares the same hardware, the series is software upgradeable, so a VX5 or VX7 can be converted to VX9 features later. GeoWork Supply ships the VX9 with the 8.5 in by 11 in DD Raider waterproof coil and charging cable, ready to assemble, with the user manual linked below.

What's Included:

• Garrett Vortex VX9 metal detector
• 8.5 in x 11 in DD Raider waterproof searchcoil with cover
• High-speed USB-C charging and data cable
• Armrest strap
• Quick start guide
• Access to Garrett online training videos

Features

Seven Frequency Options
Lock onto a single frequency of 5, 9, 13, 18 or 25 kHz to favor a target, or run one of two simultaneous multi-frequency modes, Multi for general hunting or Multi-Salt for the beach. Matching frequency to ground and target is how the VX9 reaches its depth and target ID accuracy.

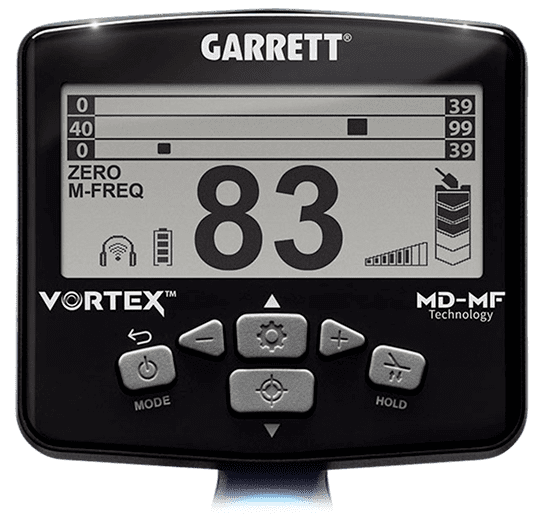

Three-Tier MD-MF Target ID
When operating in multi-frequency, the VX9 displays a non-ferrous scale and two ferrous scales. Complex targets can read on more than one scale at once, so you get more information before you dig.

Seven Search Modes
Choose from Thin Coins, Fast, Zero Discrimination, Beach, Standard, USA Coins and Custom. Thin Coins chases hammered silver and thin gold coins, while Fast adds recovery speed for trashy ground and competition hunts.

Beach Mode and Multi-Salt, Submersible to 16 ft
Beach mode and Multi-Salt hold a smooth threshold and accurate target ID on wet salt sand and in the surf. The whole detector is submersible to 16 feet (5 meters) for streams, lakes and the ocean coast.

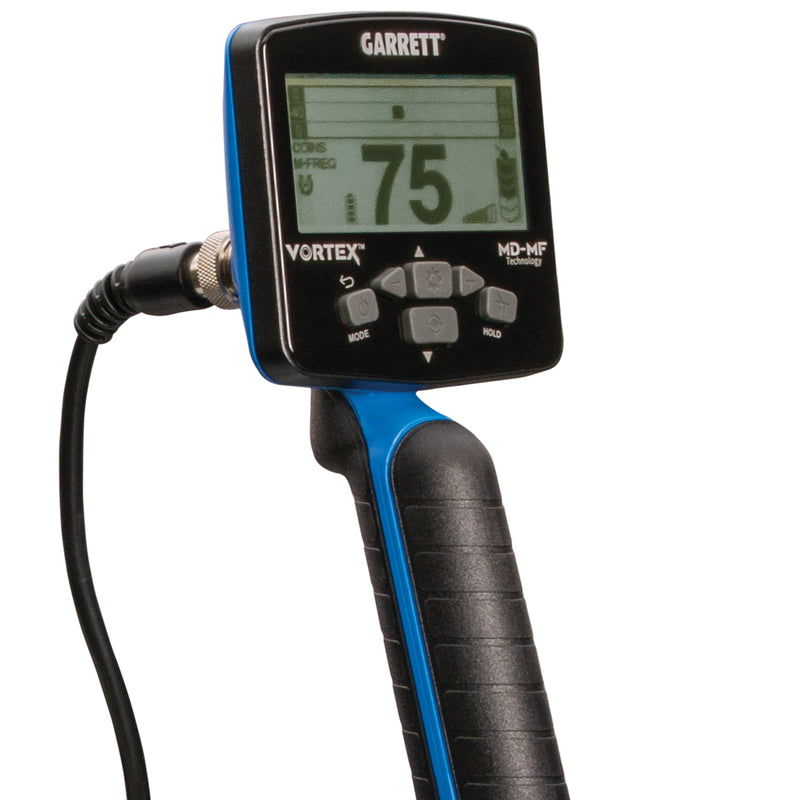

Built-in Z-Lynk Wireless
Z-Lynk wireless is built in, so you can search cordless with Garrett MS-3 or CS-3 Z-Lynk headphones, sold separately. Z-Lynk keeps audio in step with each target with no cable to snag.

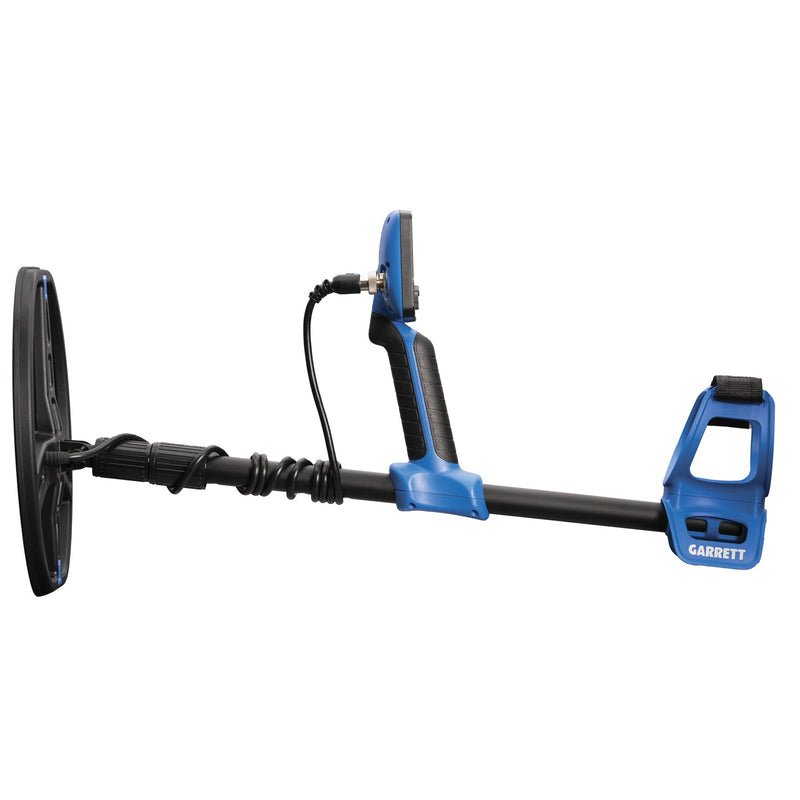

Lightweight Build, Backlit LCD and All-Day Battery
The VX9 weighs 3 lbs (1.38 kg) with the coil cover and collapses to 24.75 in (62.86 cm). A backlit LCD reads in low light and the built-in lithium-ion battery runs about 15 hours per charge.

Upgradeable Vortex Series
Every Vortex model shares the same hardware. As your skills grow you can convert a VX5 or VX7 to VX9 features with a software upgrade, adding frequencies, modes and target ID detail.

What's Included

Included with Your Purchase:

• Garrett Vortex VX9 metal detector

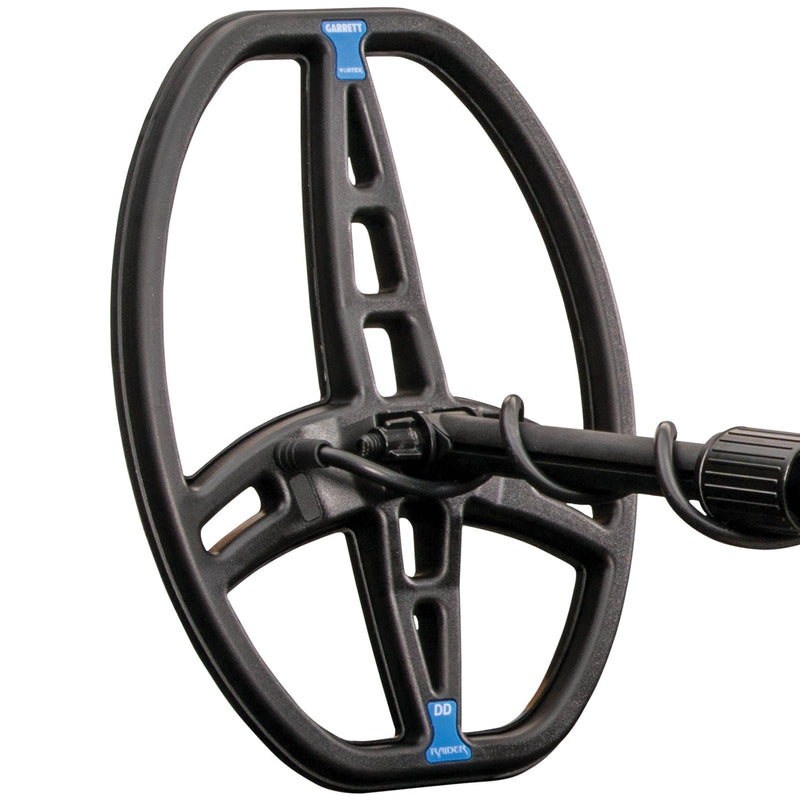

• 8.5 in x 11 in DD Raider waterproof searchcoil (PN 2238400) with cover
• High-speed USB-C charging and data cable
• Armrest strap
• Quick start guide
• Access to Garrett online training videos
• 3 year limited warranty

Specifications

FAQ

Q: Is the Garrett Vortex VX9 waterproof?
A: Yes. The VX9 is submersible to 16 feet (5 meters), coil and control housing sealed. For underwater audio you add submersible headphones, since the built-in speaker and Z-Lynk wireless are for above-water use.

Q: What frequencies does the VX9 use?
A: It offers seven options, five single frequencies at 5, 9, 13, 18 and 25 kHz plus two simultaneous multi-frequency modes, Multi for general hunting and Multi-Salt for saltwater beaches.

Q: How is the VX9 different from the VX7 and VX5?
A: The VX9 adds the most frequencies, a three-tier target ID, Thin Coins and Fast modes and three recovery speeds. All three share the same hardware, so a VX5 or VX7 can be upgraded to VX9 features with software.

Q: Can the VX9 be used on saltwater beaches?
A: Yes. Beach mode and Multi-Salt operation hold a smooth threshold and accurate target ID on wet salt sand and in the surf where single-frequency detectors often struggle.

Q: What coil comes with the VX9?
A: It ships with the 8.5 inch by 11 inch DD Raider waterproof searchcoil and cover. Other Vortex Raider and Reaper coils are available, including underwater-connector versions for diving.

Q: Does the VX9 have wireless audio?
A: Yes. Z-Lynk wireless is built in. It pairs with Garrett MS-3 or CS-3 Z-Lynk headphones, which are sold separately on the standard VX9.

Warranty

Garrett backs the Vortex VX9 with a 3 year limited warranty against defects in materials and workmanship.
