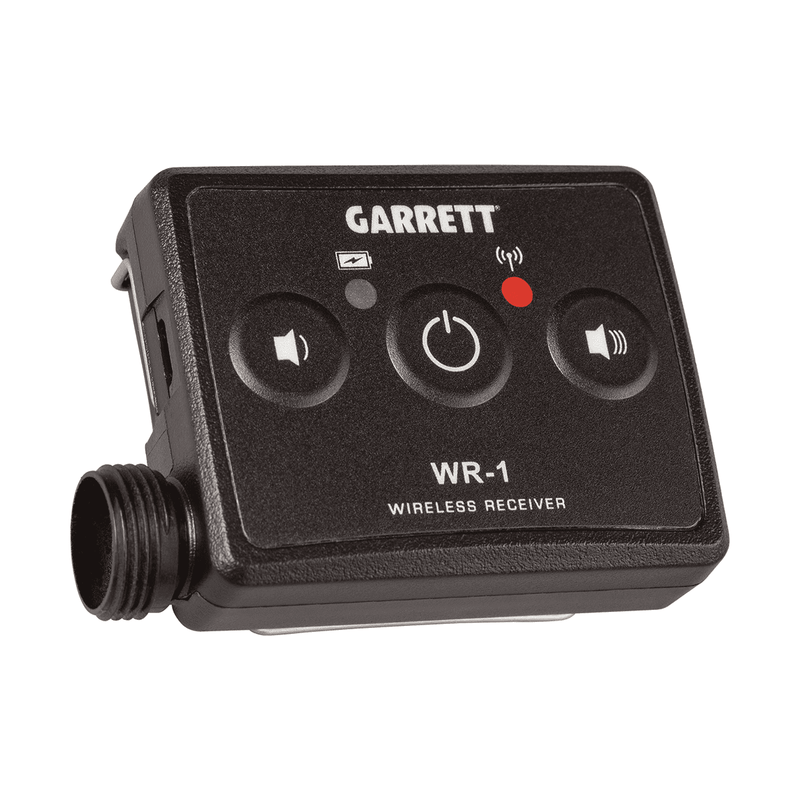

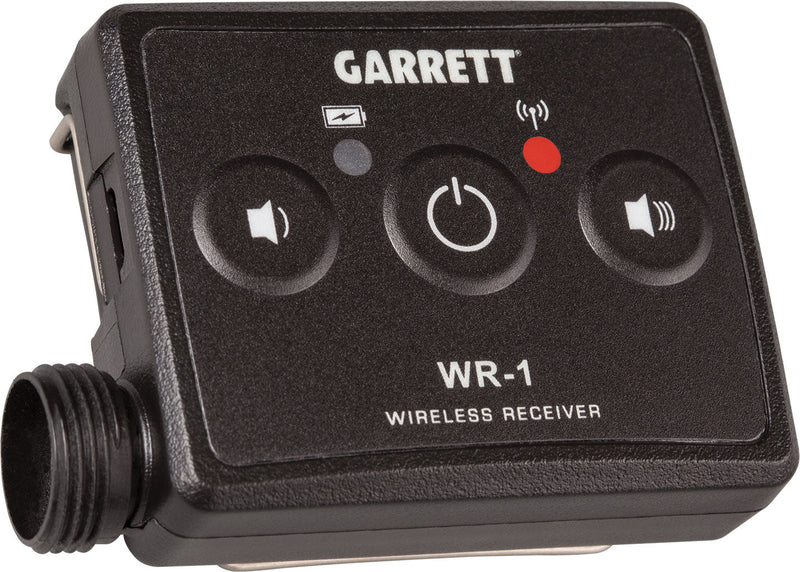

Garrett Z-Lynk WR-1 Wireless Receiver for 2-Pin AT Headphones
The Garrett Z-Lynk WR-1 Wireless Receiver for 2-pin AT headphones is the receiver half of the Z-Lynk system. It carries a 2-pin AT connector, so your Garrett 2-pin AT headphones plug straight in, and it pairs with any Z-Lynk transmitter to give you wireless audio with no cable running down the shaft.
Z-Lynk runs on a 2.4 GHz frequency hopping link with a 17 millisecond audio delay, about 6 times faster than Bluetooth. You hear the target signal while the coil is still over the target, which keeps pinpointing accurate. The WR-1 runs up to 30 hours on a charge and recharges over any micro-USB port.
This is the receiver only. To go fully wireless you also need a Z-Lynk transmitter and a set of 2-pin AT headphones, both sold separately. It suits Garrett 2-pin AT detectors such as the AT Pro, AT Gold, AT Pro International, ATX, Sea Hunter Mark II and Infinium LS. GeoWork Supply ships the WR-1 with its USB charging cable.
What's Included:
- Garrett Z-Lynk WR-1 wireless receiver with 2-pin AT connector
- USB charging cable
Features
Adds Wireless to 2-Pin AT Headphones
The WR-1 carries a 2-pin AT connector, so the Garrett 2-pin headphones you already own plug right in and go wireless. It clips to a belt or strap and stays out of the way on the hunt.
Pairs with Any Z-Lynk Transmitter
The WR-1 connects to any Z-Lynk WT-1 transmitter, so if you already run a Z-Lynk machine you can add this receiver and keep a second headset wireless. Transmitter sold separately.
Up to 30 Hours, Micro-USB Charge
The receiver runs up to 30 hours on a charge and tops up over any micro-USB port. A 17 millisecond delay keeps the audio about 6 times faster than Bluetooth so targets sound in real time.
Frequency Hopping, No Crosstalk
The 2.4 GHz frequency hopping link builds its own channel, so the WR-1 will not pick up audio from nearby headsets or interference from other wireless devices when several people hunt together.
What's Included
Included with Your Purchase:
- Garrett Z-Lynk WR-1 wireless receiver with 2-pin AT connector
- USB charging cable
Specifications
| Type | Z-Lynk WR-1 wireless receiver |
| Headphone Connector | 2-pin AT |
| Audio Delay | 17 milliseconds, about 6 times faster than Bluetooth |
| Bandwidth | 20 kHz high fidelity |
| Operating Frequency | 2.4 GHz band, frequency hopping |
| Battery | Rechargeable lithium-ion, up to 30 hours per charge |
| Charging | Micro-USB, cable included |
| Auto Power Off | After 30 minutes of non-use |
| Environmental | IP52, water resistant, do not submerge |
| Requires | A Z-Lynk transmitter and 2-pin AT headphones, sold separately |
| Compatible Detectors | AT Pro, AT Gold, AT Pro International, ATX, Sea Hunter Mark II, Infinium LS |
| Warranty | 2 year limited |
FAQ
Q: Is a transmitter included?
A: No. This listing is the WR-1 receiver only. To complete the wireless system you also need a Z-Lynk transmitter, sold separately.
Q: Which headphones does it use?
A: It has a 2-pin AT connector, so it works with Garrett 2-pin AT headphones. Headphones are not included.
Q: What detectors is it for?
A: It suits Garrett 2-pin AT detectors, including the AT Pro, AT Gold, AT Pro International, ATX, Sea Hunter Mark II and Infinium LS.
Q: How long does it run on a charge?
A: Up to 30 hours per charge. It recharges over any micro-USB port and powers off on its own after 30 minutes of non-use.
Q: How fast is the audio?
A: Z-Lynk delivers audio in 17 milliseconds, about 6 times faster than Bluetooth, so you hear targets in real time as the coil passes over them.
Resources
Warranty
Garrett backs the Z-Lynk WR-1 receiver with a 2 year limited warranty against defects in materials and workmanship.
