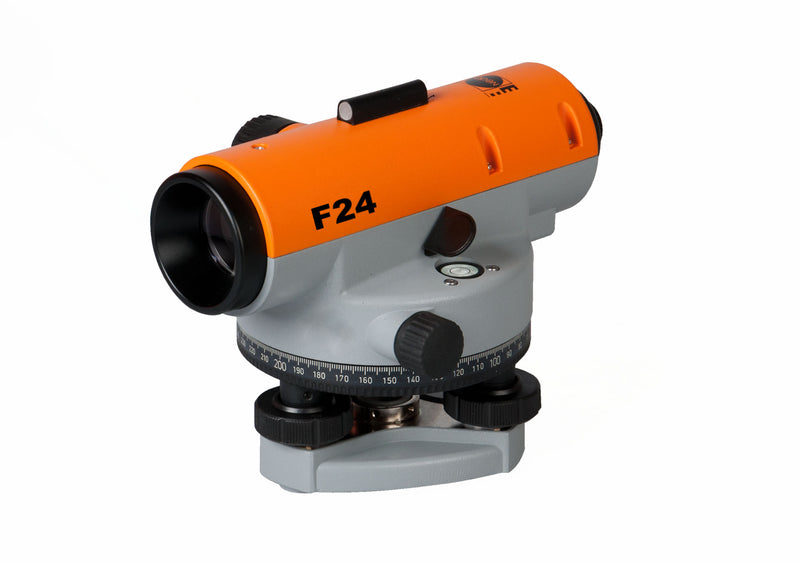

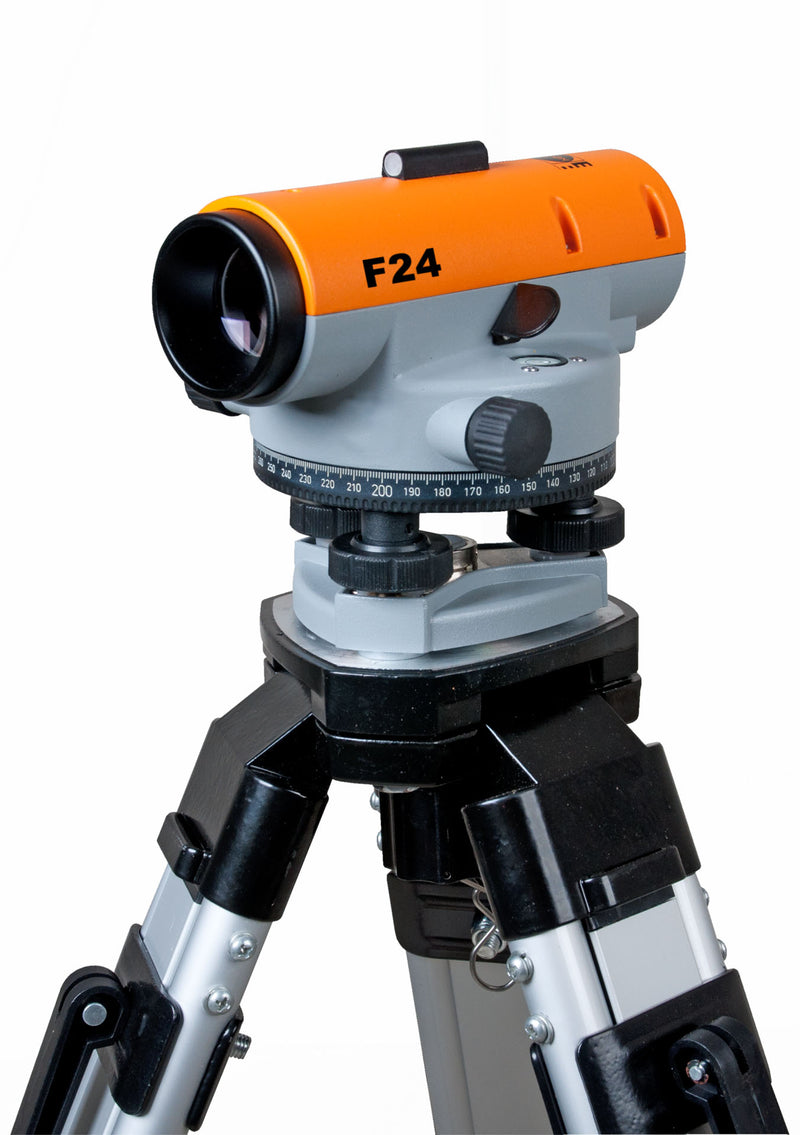

Nedo F24 Builders' Level
Builders' Level F24
The F24 Builders' Level features first-class optics with 24x magnification, a sturdy metal housing, a magnetic-damped compensator, and a modern design. This instrument is suitable for use in demanding conditions.
The F24 provides a high-contrast, upright image through bright optics with a large objective aperture.
What's Included
Included with Your Purchase:
- 1 × Nedo F24 Builders' Level
- Comes with plumb bob, adjusting pin and robust case
Features
Exceptional Optical Clarity
Experience a high-contrast, upright image through bright optics with a large 30mm objective aperture and 24x magnification.
Reliable Compensation System
Benefit from a sturdy, magnetic-damped compensator ensuring accurate measurements with an operating range of ± 15' and setting accuracy of ± 0.5''.
Robust Construction
The F24 Builders' Level features a sturdy metal housing, making it suitable for demanding conditions and ensuring long-term durability.
Comprehensive Kit Included
The instrument comes complete with a plumb bob, adjusting pin, and a robust carrying case for convenience and protection.
Precision Measurement Capabilities
Achieve precise leveling with a standard deviation of ± 2.5 mm per km double-run leveling and a shortest focusing distance of 23.6'' / 0.6 m.

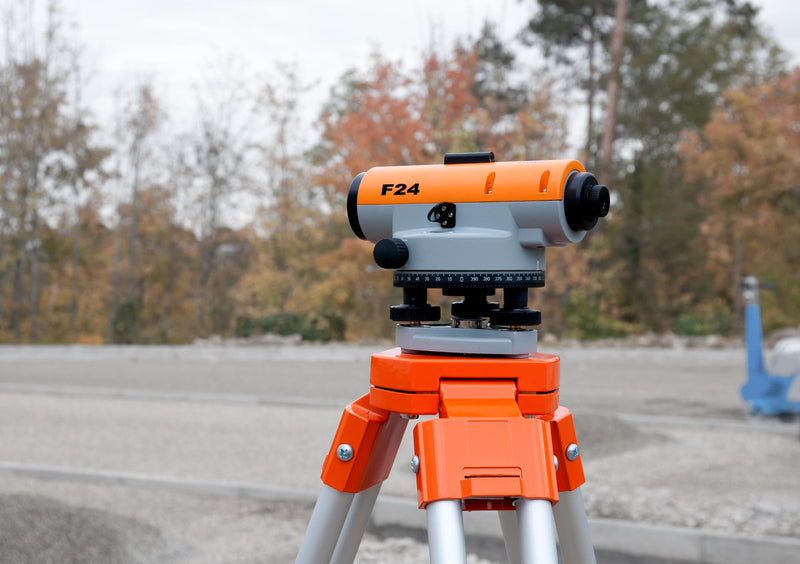

Weatherproof Durability
Designed for outdoor use, the level boasts an IP 54 protection class, safeguarding it against dust and splashing water.
Specifications
| Type | F24 |
| Image | upright |
| Magnification | 24x |
| Clear objective aperture | 30 mm |
| Shortest focusing distance | 23.6'' / 0.6 m |
| Multiplication factor (stadia constant) | 100 |
| Compensator operating range | ± 15' |
| Compensator setting accuracy | ± 0.5'' |
| Horizontal circle | 360° |
| Sensitivity of circular bubble | 8'/0.08'' / 8'/2 mm |
| Standard deviation per km double-run leveling | ± 2.5 mm |
| Protection class | IP 54 |
| Weight | 2.8 lbs / 1.26 kg |
| Connecting thread | 5/8'' x 11 |
| Ref.-No. | 460778-613 |
Resources
Documents:
FAQ
Q: What is the magnification of the Nedo F24 Builders' Level?
A: The Nedo F24 Builders' Level has 24x magnification.
Q: What is included with the Nedo F24 Builders' Level?
A: It comes with a plumb bob, adjusting pin, and a robust case.
Q: What is the weight of the Nedo F24 Builders' Level?
A: The Nedo F24 Builders' Level weighs 2.8 lbs / 1.26 kg.
Q: What is the protection class of this level?
A: The protection class of the level is IP 54.
Q: What is the shortest focusing distance of the Nedo F24?
A: The shortest focusing distance is 23.6'' / 0.6 m.
Q: What type of image does the F24 Builders' Level provide?
A: The F24 Builders' Level provides an upright, high-contrast image.
About Nedo
Nedo is a German manufacturer of precision surveying and measuring instruments, family-owned since 1901, with products manufactured in Germany and Switzerland.
