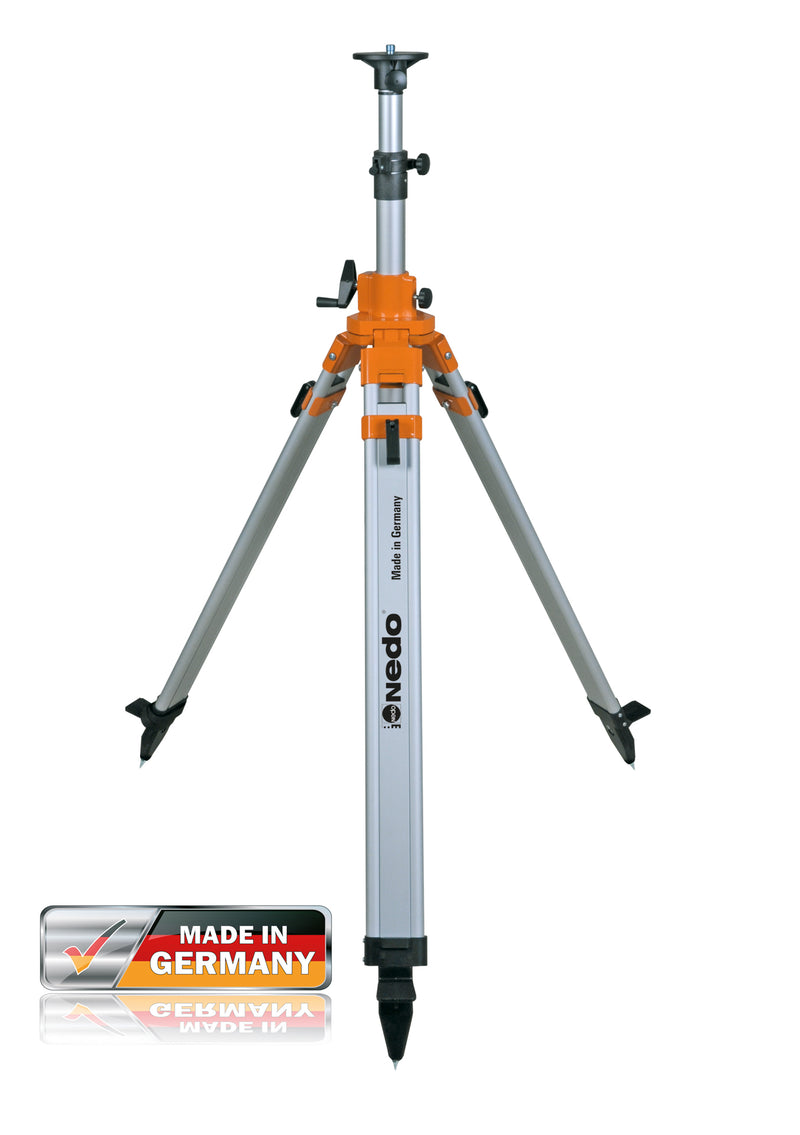

Nedo Heavy-Duty Elevating Tripod, 1.41-2.90m
Heavy-Duty Elevating Tripod
Nedo elevating tripods are designed to provide a secure and stable platform for lasers and surveying instruments. They feature an indirect gear unit to smoothly raise instruments to the required working height. The elevating column includes an inch and mm scale for precise height adjustments.
This tripod is constructed with silver-anodized aluminum legs and a powder-coated aluminum head and plate. It incorporates a circular bubble for leveling. Manufactured in Germany, this tripod prioritizes stability and reliability for surveying applications.
What's Included
Included with Your Purchase:
- 1 × Nedo Heavy-Duty Elevating Tripod, 1.41-2.90m
Features
Smooth Instrument Elevation
An indirect gear unit allows instruments to be smoothly raised to the required working height.
Precise Height Readings
The elevating column includes both an inch and a millimeter scale for accurate height adjustments.
Durable Construction Materials
The tripod is built with silver-anodized aluminum legs and a powder-coated aluminum head and plate for lasting durability.
Versatile Terrain Stability
Combi tripod shoes provide stable support for use across various types of terrain.
Enhanced Structural Stability
Brass hinge pins are incorporated into the design to contribute to the tripod's extra stability.
Accurate Instrument Leveling
A circular bubble is integrated into the tripod to ensure accurate leveling of surveying instruments.
Specifications
| Min. effective height | approx. 40" / 1.01 m |
| Max. effective height | approx. 116" / 2.94 m |
| Retracted length | approx. 52" / 1.32 m |
| Weight | approx. 16.4 lbs. / 7.44 kg |
| Tripod plate, diameter | 4.3" / 110 mm |
| Holding screw | 5/8" x 11 thread |
| Telescopic section | 2-fold |
| Adjustable column range | 20"/19" / 490/520 mm |

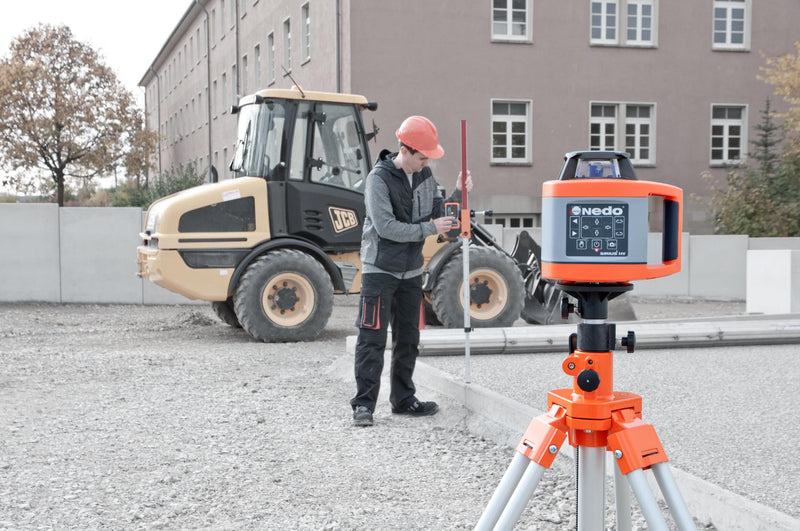

| Suitable for | Rotating lasers; Heavy-duty rotating lasers |
Resources
Documents:
FAQ
Q: What is the minimum and maximum effective height of this tripod?
A: The minimum effective height is approximately 1.01 m (40") and the maximum effective height is approximately 2.94 m (116").
Q: What materials are used in the construction of this tripod?
A: It is constructed with silver-anodized aluminum legs and a powder-coated aluminum head and plate.
Q: What type of instruments is this tripod suitable for?
A: This tripod is suitable for rotating lasers and heavy-duty rotating lasers.
Q: What is the weight of the tripod?
A: The tripod weighs approximately 16.4 lbs. / 7.44 kg.
Q: Does the tripod have a leveling mechanism?
A: Yes, it incorporates a circular bubble for leveling.
Q: Where is this tripod manufactured?
A: This tripod is manufactured in Germany.
About Nedo
Nedo is a German manufacturer of precision surveying and measuring instruments, family-owned since 1901, with products manufactured in Germany and Switzerland.
